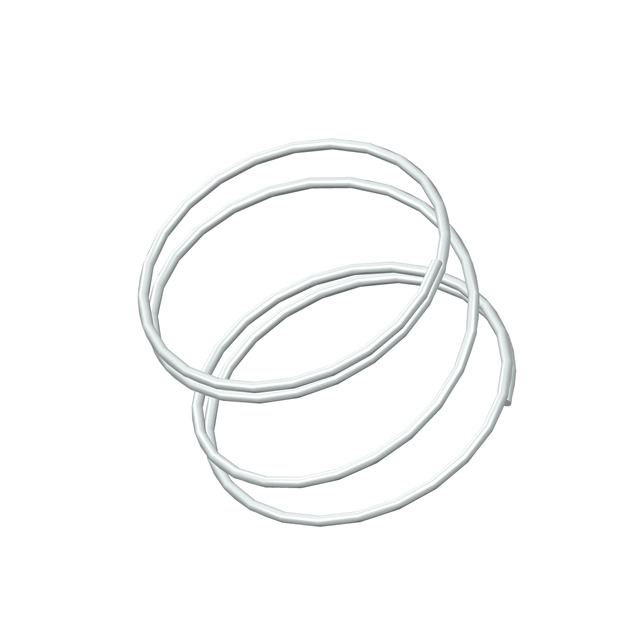

A10-53CS

Active

Century Spring Corp

COMP O= .468,L= .34,W= .016

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10-53CS

Active

Century Spring Corp

COMP O= .468,L= .34,W= .016

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A10-53CS

Diameter - Inside [diameter]	11.07 mm
Diameter - Inside [diameter]	0.436 in
Diameter - Outside [diameter]	0.468 in
Diameter - Outside [diameter]	11.89 mm
End Style	Closed
Finish	None
Material	Stainless Steel
Rate	0.45 lbs/in
Type	Compression
Wire Diameter	0.41 mm
Wire Diameter	0.016 "

A10 Series

Part	End Style	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Finish	Material	Free Length	Free Length	Rate	Wire Diameter	Wire Diameter	Diameter - Outside	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Diameter - Inside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Wire Diameter	Load	Diameter - Inside
Century Spring Corp A10-70CS	Closed Ground	0.265 in	6.73 mm	Zinc	Spring Steel	1.09 in	27.69 mm	50 lbs/in	0.055 in	1.4 mm	9.53 mm	0.375 in
Century Spring Corp A10-37CS	Closed		0.083 in	None	Stainless Steel	0.84 in	21.34 mm	2.3 lbs/in				0.109 in	2.77 mm	Compression	2.11 mm	0.013 in	0.33 mm
Century Spring Corp A10-48CS	Closed	0.181 in	4.6 mm	None	Stainless Steel	1.28 in	32.51 mm	1 lbs/in				0.219 "	5.56 mm			0.019 in	0.48 mm
Century Spring Corp A10-62CS	Closed Ground	0.654 in	16.61 mm	None	Stainless Steel	0.75 in	19.05 mm	3.3 lbs/in	0.04 in	1.02 mm		0.734 in	18.64 mm
Century Spring Corp A10-1CS				None	Music Wire			0.96 lbs/in		0.61 mm		0.36 in	9.14 mm					0.024 "	2 lbs
Century Spring Corp A10-50CS	Closed Ground	0.424 in		Gold Iridite	Music Wire	0.31 in	7.87 mm	12 lbs/in	0.03 in	0.76 mm		0.484 in	12.29 mm							10.77 mm
Century Spring Corp A10-53CS	Closed	0.436 in	11.07 mm	None	Stainless Steel			0.45 lbs/in	0.016 "	0.41 mm		0.468 in	11.89 mm	Compression
Century Spring Corp A10-22CS	Closed Ground	0.256 in	6.5 mm	None	Music Wire	0.41 in	10.41 mm	2.2 lbs/in	0.02 "	0.51 mm		0.296 in	7.52 mm
Century Spring Corp A10-13CS	Closed	0.052 in	1.32 mm	Gold Iridite	Music Wire			2.6 lbs/in	0.008 in	0.2 mm		0.068 in	1.73 mm
Century Spring Corp A10-27CS	Closed Ground	0.256 in	6.5 mm	None	Stainless Steel	0.44 in	11.18 mm					0.328 in	8.33 mm			0.036 in	0.91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.28
		50	$ 3.51
		150	$ 3.33
		300	$ 3.14
		500	$ 2.77

Description

General part information

A10 Series

COMP O= .468,L= .34,W= .016

Documents

Technical documentation and resources
