STL-1-600-8-01

Active

Essentra Access Solutions

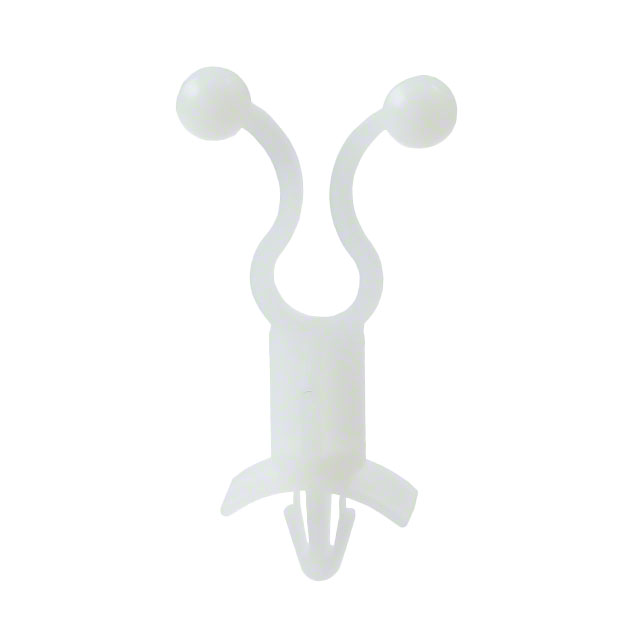

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 45.2 MM, 15.2 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 45.2 MM, 15.2 MM

Technical Specifications

Parameters and characteristics for this part

Specification	STL-1-600-8-01

Color	Natural
Height [z]	1.78 in
Height [z]	45.21 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Panel Hole Size	0.157 in
Panel Hole Size	4 mm
Panel Thickness [Max]	0.078 in
Panel Thickness [Max]	1.98 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	Clip, Twist Lock

Part	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Hole Size	Panel Hole Size	Type	Height [z]	Height [z]	Mounting Type	Material	Material Flammability Rating	Color
Essentra Access Solutions STL-1-600-3-01	0.078 in	0.031 "	0.79 mm	1.98 mm	0.157 in	4 mm	Clip Twist Lock	37.31 mm	1.469 in	Arrowhead Winged	Polyamide (PA66) Nylon 6/6	UL94 V-2	Natural
Essentra Access Solutions STL-1-600-8-01	0.078 in	0.031 "	0.79 mm	1.98 mm	0.157 in	4 mm	Clip Twist Lock	45.21 mm	1.78 in	Arrowhead Winged	Polyamide (PA66) Nylon 6/6	UL94 V-2	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Twist Lock Natural Arrowhead, Winged 0.500" ~ 0.598" (12.70mm ~ 15.19mm)
