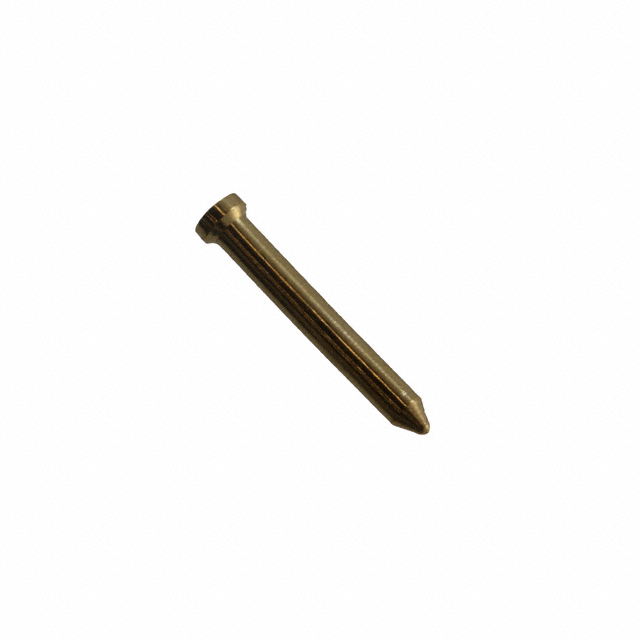

8579-1-15-15-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

8579-1-15-15-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8579-1-15-15-21-27-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall	7.49 mm
Length - Overall [x]	0.295 in
Mounting Hole Diameter [diameter]	0.04 in
Mounting Hole Diameter [diameter]	1.02 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Tail Type	No Tail
Termination	Solder

8579-1 Series

Part	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 8579-1-15-80-21-27-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	0.76 Ám	30 Áin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Gold	0.79 mm	0.031 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8579-1-15-80-11-84-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	2.54 µm	100 µin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Tin	0.79 mm	0.031 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8579-1-15-01-21-02-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	2.54 µm	100 µin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Tin-Lead	0.79 mm	0.031 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8579-1-15-15-21-27-10-0					0.76 Ám	30 Áin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Gold	0.79 mm	0.031 in	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 8579-1-15-15-21-14-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	0.25 Ám	10 Áin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Gold	0.79 mm	0.031 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8579-1-15-80-11-27-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	0.76 Ám	30 Áin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Gold	0.79 mm	0.031 in	Beryllium Copper
Mill-Max Manufacturing Corp. 8579-1-15-01-21-14-10-0	0.015 "	0.51 mm	0.02 "	0.38 mm	0.25 Ám	10 Áin	No Tail	0.04 in	1.02 mm	1.4 mm	0.055 in	Solder	-55 °C	125 °C	0.295 in	7.49 mm	Gold	0.79 mm	0.031 in	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.36
		10	$ 0.30
		25	$ 0.27
		50	$ 0.25
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.17
		2500	$ 0.16

Description

General part information

8579-1 Series

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder
