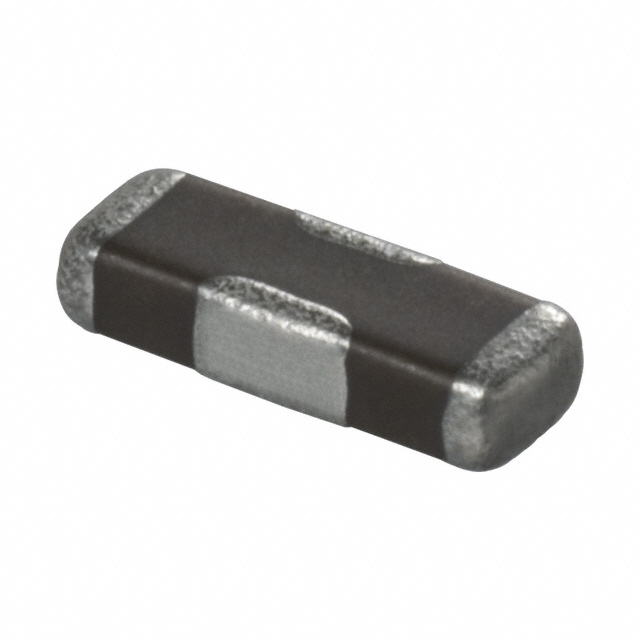

NFM41CC220U2A3L

Obsolete

Murata Power Solutions Inc.

CAP FEEDTHRU 22PF 100V 1806

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP FEEDTHRU 22PF 100V 1806

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Height (Max) [Max]	Tolerance [Max]	Tolerance [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Capacitance	Mounting Type	Voltage - Rated	DC Resistance (DCR) (Max) [Max]
Murata Power Solutions Inc. NFM41CC221U2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	220 pF	Surface Mount	100 V
Murata Power Solutions Inc. NFM41CC222R2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	2200 pF	Surface Mount	100 V	300 mOhm
Murata Power Solutions Inc. NFM41CC470U2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	47 pF	Surface Mount	100 V
Murata Power Solutions Inc. NFM41CC220U2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	22 pF	Surface Mount	100 V
Murata Power Solutions Inc. NFM41CC223R2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	0.022 µF	Surface Mount	100 V	300 mOhm
Murata Power Solutions Inc. NFM41CC102R2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	0.001 µF	Surface Mount	100 V	300 mOhm
Murata Power Solutions Inc. NFM41CC101U2A3L	0.047 in	1.2 mm	50 %	-20 %	1.6 mm	0.177 in	0.063 in	4.5 mm	-55 °C	125 °C	3	1806 (4516 Metric)	100 pF	Surface Mount	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 pF Feed Through Capacitor 100V 300 mA 1806 (4516 Metric), 3 PC Pad

Technical documentation and resources
