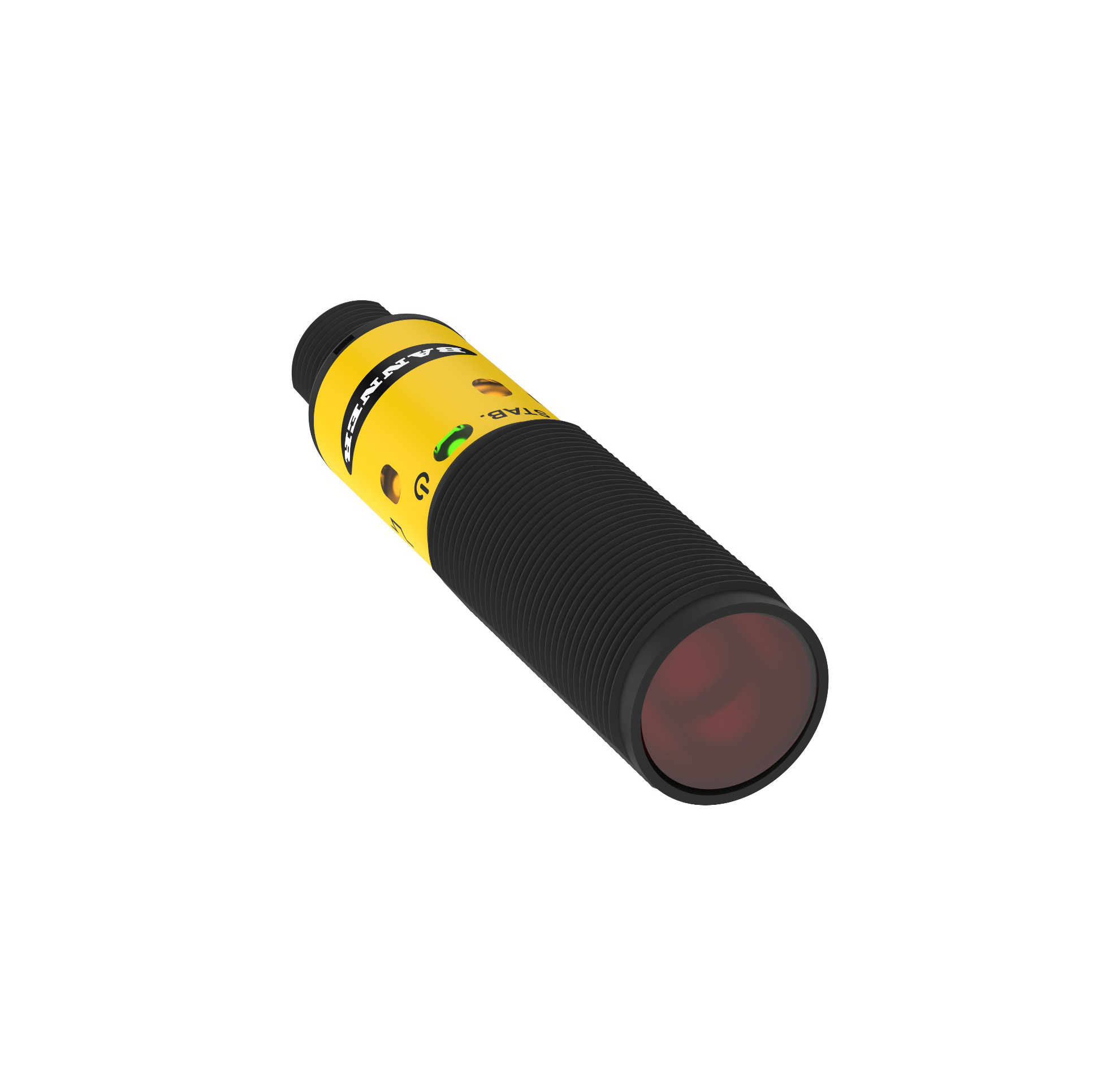

S18-2VPFF150-Q8
ActiveBANNER ENGINEERING
S18-2 SERIES: FIXED FIELDRAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S18-2VPFF150-Q8
ActiveBANNER ENGINEERING
S18-2 SERIES: FIXED FIELDRAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S18-2VPFF150-Q8 |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Red (624nm) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 1.5 ms |
| Sensing Distance | 5.906 in |
| Sensing Distance | 15 cm |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
S18-2V Series
| Part | Connection Method | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Method | Ingress Protection | Voltage - Supply [Max] | Voltage - Supply [Min] | Response Time | Light Source | Sensing Distance | Sensing Distance | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | Connector | PNP - Dark-ON/Light-ON | -40 °C | 70 °C | Diffuse | IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red LED | 750 mm | 29.528 in | ||
BANNER ENGINEERING | Cable | PNP - Dark-ON/Light-ON - Selectable | -40 °C | 70 °C | Through-Beam | NEMA 6P IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | LED | 25 m | 82.02 ft | 78.74 in | 2 m |
BANNER ENGINEERING | Cable | NPN - Dark-ON/Light-ON | -40 °C | 70 °C | Polarized Retroreflective | IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red LED | 6 m | 236.22 in | 78.74 in | 2 m |
BANNER ENGINEERING | Cable | PNP - Dark-ON/Light-ON - Selectable | -40 °C | 70 °C | Background Suppression | NEMA 6P IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red (624nm) | 15 cm | 5.906 in | 78.74 in | 2 m |
BANNER ENGINEERING | Cable | PNP - Dark-ON/Light-ON - Selectable | -40 °C | 70 °C | Through-Beam | NEMA 6P IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | LED | 25 m | 82.02 ft | 78.74 in | 2 m |
BANNER ENGINEERING | Connector | PNP - Dark-ON/Light-ON - Selectable | -40 °C | 70 °C | Background Suppression | NEMA 6P IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red LED | 75 mm | 2.953 in | ||
BANNER ENGINEERING | Connector | PNP - Dark-ON/Light-ON | -40 °C | 70 °C | Polarized Retroreflective | IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red LED | 6 m | 236.22 in | ||
BANNER ENGINEERING | Cable | PNP - Dark-ON/Light-ON - Selectable | -40 °C | 70 °C | Diffuse | NEMA 6P IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red (624nm) | 300 mm | 11.811 in | 78.74 in | 2 m |
BANNER ENGINEERING | Cable | NPN - Dark-ON/Light-ON | -40 °C | 70 °C | Diffuse | IEC IP67 | 30 VDC | 10 VDC | 1.5 ms | Red LED | 750 mm | 29.528 in | 78.74 in | 2 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18-2V Series
Background Suppression Optical Sensor 5.906" (150mm) PNP - Dark-ON/Light-ON - Selectable
