ACW212

Obsolete

Panasonic Electric Works

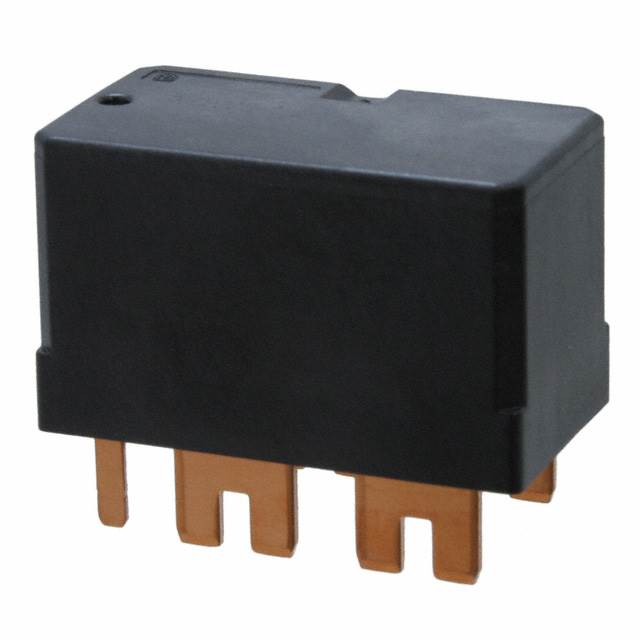

RELAY AUTOMOTIVE DPST 45A 12V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY AUTOMOTIVE DPST 45A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	ACW212

Coil Current	117 mA
Coil Power	1.4 W
Coil Resistance	103 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Alloy, Cadmium Free
Contact Rating (Current)	45 A
Mounting Type	Free Hanging
Must Operate Voltage	6.2 VDC
Must Release Voltage	0.5 VDC
Operate Time	20 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	20 ms
Switching Voltage	14 VDC
Termination Style	Weld Terminal, Quick Connect - 0.079" (2.0mm)

Part	Coil Voltage	Coil Type	Coil Current	Must Release Voltage	Termination Style	Must Operate Voltage	Contact Rating (Current)	Coil Power	Contact Form	Contact Material	Release Time	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Mounting Type	Operate Time
Panasonic Electric Works ACW212	12 VDC	Non Latching	117 mA	0.5 VDC	Quick Connect - 0.079" (2.0mm) Weld Terminal	6.2 VDC	45 A	1.4 W	DPST-NO (2 Form A)	Cadmium Free Silver Alloy	20 ms	103 Ohms	125 °C	-40 °C	14 VDC	Free Hanging	20 ms
