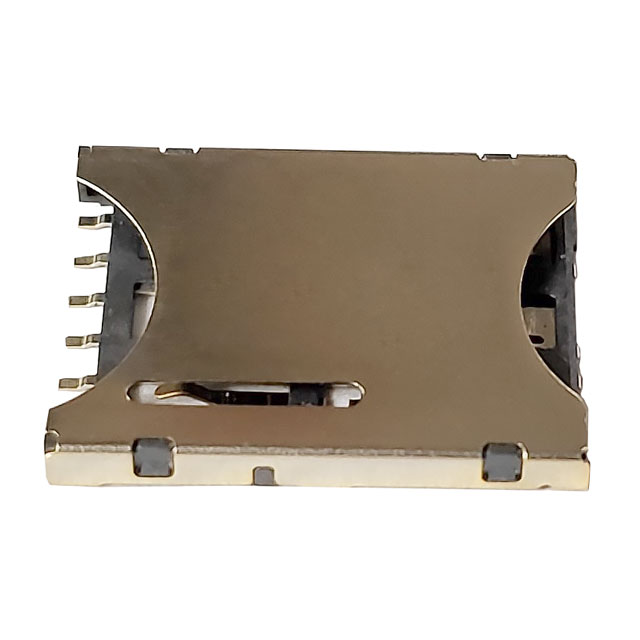

NSCC-A2-06-G-SMT-T/R
ActiveAdam Tech
NANO SIM CARD CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
NSCC-A2-06-G-SMT-T/R
ActiveAdam Tech
NANO SIM CARD CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NSCC-A2-06-G-SMT-T/R |
|---|---|
| Card Type | NANO SIM |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Height Above Board | 1.3 mm |
| Height Above Board [z] | 0.051 " |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.04 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 2.04 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.94 | |||
| Tape & Reel (TR) | 2000 | $ 0.87 | ||
| 4000 | $ 0.82 | |||
| 6000 | $ 0.78 | |||
| 10000 | $ 0.75 | |||
Description
General part information
NSCC-A2 Series
6 Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
