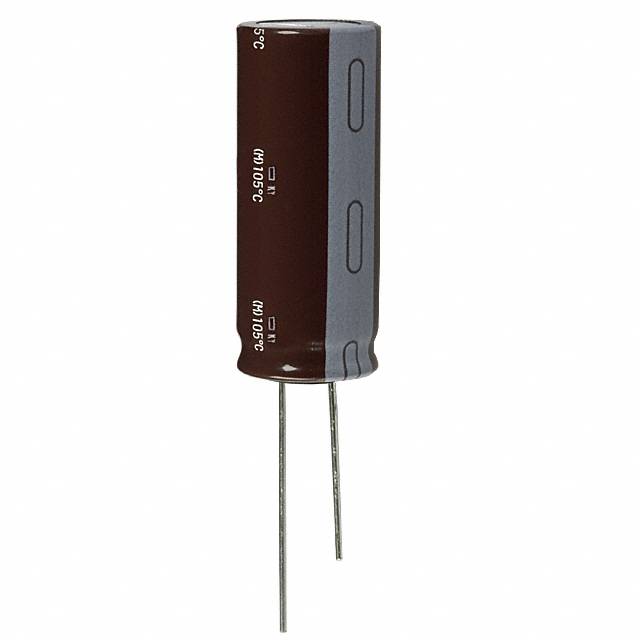

EKY-500ELL182ML40S

Active

Chemi-Con

CAPACITOR,1800UF,50VDC,20-% TOL,20+% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-500ELL182ML40S

Active

Chemi-Con

CAPACITOR,1800UF,50VDC,20-% TOL,20+% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-500ELL182ML40S

Applications	General Purpose
Capacitance	1800 µF
Height - Seated (Max) [Max]	1.634 "
Height - Seated (Max) [Max]	41.5 mm
Impedance	16 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	3.71 A
Ripple Current @ Low Frequency	2.226 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	50 VDC

EKY-500E Series

Part	Tolerance	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Impedance	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Applications	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-500ELL821ML20S	20 %	Radial Can	10000 Hrs	21.5 mm	0.846 in	Polar	7.5 mm	0.295 in	2.21 A	34 mOhms	50 VDC	Through Hole	0.63 in	16 mm	-40 °C	105 ░C	1.326 A	General Purpose	820 µF
Chemi-Con EKY-500ETD2R2ME11D	20 %	Radial Can	5000 Hrs	12.5 mm	0.492 in	Polar	2 mm	0.079 in	43 mA	2.5 Ohms	50 VDC	Through Hole	0.197 "	5 mm	-40 °C	105 ░C	17.2 mA	General Purpose	2.2 µF
Chemi-Con EKY-500ELL182ML40S	20 %	Radial Can	10000 Hrs	1.634 "		Polar	7.5 mm	0.295 in	3.71 A	16 mOhms	50 VDC	Through Hole	0.63 in	16 mm	-40 °C	105 ░C	2.226 A	General Purpose	1800 µF	41.5 mm
Chemi-Con EKY-500ELL221MJ16S	20 %	Radial Can	7000 Hrs	17.5 mm	0.689 in	Polar	5 mm	0.197 in	1.05 A	84 mOhms	50 VDC	Through Hole	0.394 in	10 mm	-40 °C	105 ░C	525 mA	General Purpose	220 µF
Chemi-Con EKY-500ELL4R7ME11D	20 %	Radial Can	5000 Hrs	12.5 mm	0.492 in	Polar	2 mm	0.079 in	88 mA	1.9 Ohms	50 VDC	Through Hole	0.197 "	5 mm	-40 °C	105 ░C	35.2 mA	General Purpose	4.7 µF
Chemi-Con EKY-500ELL471MJ30S	20 %	Radial Can	7000 Hrs	31.5 mm	1.24 in	Polar	5 mm	0.197 in	1.69 A	43 mOhms	50 VDC	Through Hole	0.394 in	10 mm	-40 °C	105 ░C	845 mA	General Purpose	470 µF
Chemi-Con EKY-500ELL681MK30S	20 %	Radial Can	10000 Hrs	31.5 mm	1.24 in	Polar	5 mm	0.197 in		30 mOhms	50 VDC	Through Hole	0.492 in	12.5 mm	-40 °C	105 ░C	1.386 A	General Purpose	680 µF
Chemi-Con EKY-500ELL821MK35S	20 %	Radial Can	10000 Hrs			Polar	5 mm	0.197 in	2.51 A	25 mOhms	50 VDC	Through Hole	0.492 in	12.5 mm	-40 °C	105 ░C	1.506 A	General Purpose	820 µF		36.5 mm	1.437 in
Chemi-Con EKY-500ETD4R7ME11D	20 %	Radial Can	5000 Hrs	12.5 mm	0.492 in	Polar	2 mm	0.079 in	88 mA	1.9 Ohms	50 VDC	Through Hole	0.197 "	5 mm	-40 °C	105 ░C	35.2 mA	General Purpose	4.7 µF
Chemi-Con EKY-500ELL560MF11D	20 %	Radial Can	5000 Hrs	12.5 mm	0.492 in	Polar	2.5 mm	0.098 in	295 mA	300 mOhms	50 VDC	Through Hole	0.248 in	6.3 mm	-40 °C	105 ░C	118 mA	General Purpose	56 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.86
		10	$ 1.43
		50	$ 1.31
		250	$ 0.98
		500	$ 0.87
		1000	$ 0.76
		2500	$ 0.74
		5000	$ 0.71
Newark	Each	1	$ 2.52
		10	$ 1.80
		25	$ 1.69

Description

General part information

EKY-500E Series

1800 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
