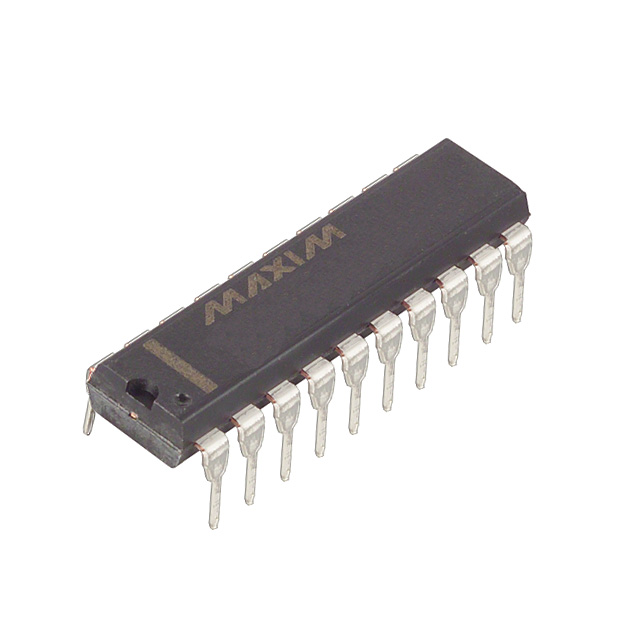

ADC0820CCN+

Active

Analog Devices Inc./Maxim Integrated

IC ADC 8BIT FLASH 20DIP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC ADC 8BIT FLASH 20DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ADC0820CCN+

Architecture	Flash
Configuration	S/H-ADC
Data Interface	Parallel
Input Type	Single Ended, Pseudo-Differential
Mounting Type	Through Hole
Number of A/D Converters	1
Number of Bits	8
Number of Inputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	20-DIP
Package / Case	7.62 mm
Package / Case	0.3 in
Ratio - S/H:ADC	1:1
Reference Type	External
Supplier Device Package	20-PDIP
Voltage - Supply, Analog [Max]	8 V
Voltage - Supply, Analog [Min]	4.5 V
Voltage - Supply, Digital [Max]	8 V
Voltage - Supply, Digital [Min]	4.5 V

Part	Data Interface	Ratio - S/H:ADC	Reference Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Configuration	Supplier Device Package	Number of A/D Converters	Number of Bits	Number of Inputs	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Architecture	Package / Case	Package / Case	Package / Case	Package / Case [y]	Package / Case [y]
Analog Devices Inc./Maxim Integrated ADC0820CCN+	Parallel	1:1	External	4.5 V	8 V	Through Hole	4.5 V	8 V	S/H-ADC	20-PDIP	1	8	1	Pseudo-Differential Single Ended	70 °C	0 °C	Flash	20-DIP	7.62 mm	0.3 in
Analog Devices Inc./Maxim Integrated ADC0820CCM+	Parallel	1:1	External	4.5 V	8 V	Surface Mount	4.5 V	8 V	S/H-ADC	20-SOIC	1	8	1	Pseudo-Differential Single Ended	70 °C	0 °C	Flash	20-SOIC			0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Bit Analog to Digital Converter 1 Input 1 Flash 20-PDIP
