A-20GQ21-B7-K

Active

Omron Electronics Inc-EMC Div

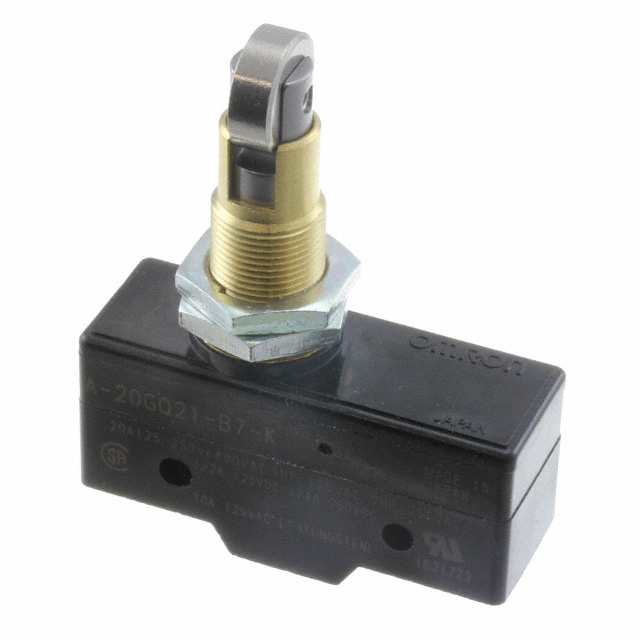

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-20GQ21-B7-K

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-20GQ21-B7-K

Actuator Type	Roller Plunger
Circuit	SPDT
Current Rating (Amps)	6 A, 20 A
Electrical Life	500000 Cycles
Ingress Protection	IP00
Mechanical Life	1000000 Cycles
Operating Force	630 gf
Operating Position	33.4 mm
Operating Position	1.313 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	3.6 mm
Overtravel	0.141 in
Pretravel	1.3 mm
Pretravel	0.051 in
Release Force	280 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

A-20GQ Series

Part	Electrical Life	Actuator Type	Overtravel	Overtravel	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Mechanical Life	Release Force	Circuit	Operating Force [Min]	Operating Force [Max]	Differential Travel	Differential Travel	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Switch Function	Operating Position	Operating Position	Operating Force
Omron Electronics Inc-EMC Div A-20GQ-B	500000 Cycles	Overtravel Plunger	5.6 mm	0.219 in	6 A 20 A	Screw Terminal	125 V	30 V	1000000 Cycles	285 gf	SPDT	400 gf	625 gf	0.008 in	0.2 mm	IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	0.859 in	21.8 mm
Omron Electronics Inc-EMC Div A-20GQ21-B7-K	500000 Cycles	Roller Plunger	3.6 mm	0.141 in	6 A 20 A	Screw Terminal	125 V	30 V	1000000 Cycles	280 gf	SPDT					IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	1.313 in	33.4 mm	630 gf
Omron Electronics Inc-EMC Div A-20GQ22	500000 Cycles	Roller Plunger	3.6 mm	0.141 in	6 A 20 A	Solder Lug	125 V	30 V	1000000 Cycles	280 gf	SPDT					IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	1.313 in	33.4 mm	630 gf
Omron Electronics Inc-EMC Div A-20GQ22-B-AS	500000 Cycles	Roller Plunger	3.6 mm	0.141 in	6 A 20 A	Screw Terminal	125 V	30 V	1000000 Cycles	280 gf	SPDT					IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	1.313 in	33.4 mm	630 gf
Omron Electronics Inc-EMC Div A-20GQ21-B	500000 Cycles	Roller Plunger	3.6 mm	0.141 in	6 A 20 A	Screw Terminal	125 V	30 V	1000000 Cycles	280 gf	SPDT					IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	1.313 in	33.4 mm	630 gf
Omron Electronics Inc-EMC Div A-20GQ21	500000 Cycles	Roller Plunger	3.6 mm	0.141 in	6 A 20 A	Solder Lug	125 V	30 V	1000000 Cycles	280 gf	SPDT					IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	1.313 in	33.4 mm	630 gf
Omron Electronics Inc-EMC Div A-20GQ-B7-K	500000 Cycles	Overtravel Plunger	5.6 mm	0.219 in	6 A 20 A	Screw Terminal	125 V	30 V	1000000 Cycles	285 gf	SPDT	400 gf	625 gf	0.008 in	0.2 mm	IP00	-25 °C	80 C	1.3 mm	0.051 in	On-Mom	0.859 in	21.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 42.95
		10	$ 35.59
		25	$ 33.03
		40	$ 31.79
		80	$ 30.03
		230	$ 27.55

Description

General part information

A-20GQ Series

Switch SPDT Panel Mount

Documents

Technical documentation and resources
