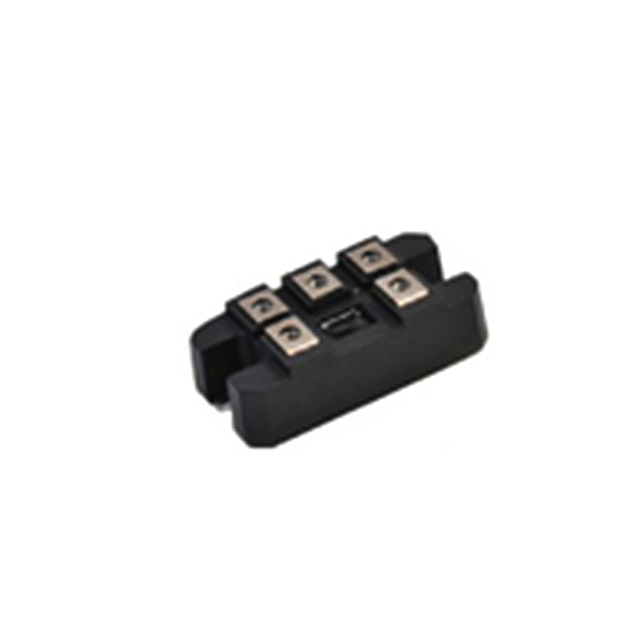

M3P75A-100

Obsolete

GeneSiC Semiconductor

BRIDGE RECT 3PHASE 1KV 75A 5SMD

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

BRIDGE RECT 3PHASE 1KV 75A 5SMD

Technical Specifications

Parameters and characteristics for this part

Specification	M3P75A-100

Current - Average Rectified (Io)	75 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SMD Module
Supplier Device Package	5-SMD
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.15 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Mounting Type	Current - Average Rectified (Io)	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Voltage - Peak Reverse (Max)
GeneSiC Semiconductor M3P75A-100	Chassis Mount	75 A	Standard	5-SMD	1.15 V	5-SMD Module	10 çA	1000 V	150 °C	-40 °C	Three Phase
GeneSiC Semiconductor M3P75A-160	Chassis Mount	75 A	Standard	5-SMD	1.15 V	5-SMD Module	10 µA		150 °C	-40 °C	Three Phase	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1 kV Chassis Mount 5-SMD
