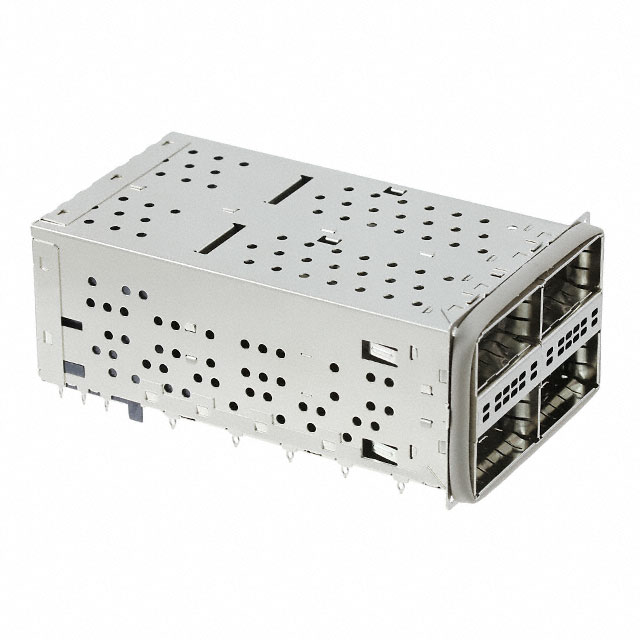

U95-Z205-4071-141

Active

Amphenol ICC (Commercial Products)

CONN QSFP+ RCPT CAGE 2X2 152P RA

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN QSFP+ RCPT CAGE 2X2 152P RA

Technical Specifications

Parameters and characteristics for this part

Specification	U95-Z205-4071-141

Connector Style	Receptacle with Cage, Ganged (2x2)
Connector Type	QSFP+
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	EMI Shielded
Mounting Type	Through Hole, Right Angle
Number of Positions	152
Termination	Press-Fit

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Contact Finish	Connector Type	Features	Connector Style
Amphenol ICC (Commercial Products) U95-Z205-4071-141	Press-Fit	0.76 Ám	30 Áin	Through Hole Right Angle	152	Gold	QSFP+	EMI Shielded	Ganged (2x2) Receptacle with Cage
Amphenol ICC (Commercial Products) U95-Z105-4081-341	Press-Fit	0.76 Ám	30 Áin	Through Hole Right Angle		Gold	QSFP+	EMI Shielded Light Pipe	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U95-Z205-4081-141	Press-Fit	0.76 Ám	30 Áin	Through Hole Right Angle	152	Gold	QSFP+	EMI Shielded Light Pipe	Ganged (2x2) Receptacle with Cage
Amphenol ICC (Commercial Products) U95-T111-1001	Press-Fit			Through Hole Right Angle			QSFP+		Cage
Amphenol ICC (Commercial Products) U95-Z105-4081-141	Press-Fit	0.76 Ám	30 Áin	Through Hole Right Angle		Gold	QSFP+	EMI Shielded Light Pipe	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U95-T151-107A	Press-Fit			Through Hole Right Angle			QSFP+	Light Pipe	Cage with Heat Sink
Amphenol ICC (Commercial Products) U95-Z205-4081-341	Press-Fit	0.76 Ám	30 Áin	Through Hole Right Angle	152	Gold	QSFP+	EMI Shielded Light Pipe	Ganged (2x2) Receptacle with Cage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

152 (38 x 4) Position QSFP+ Receptacle with Cage, Ganged (2x2) Connector Press-Fit Through Hole, Right Angle
