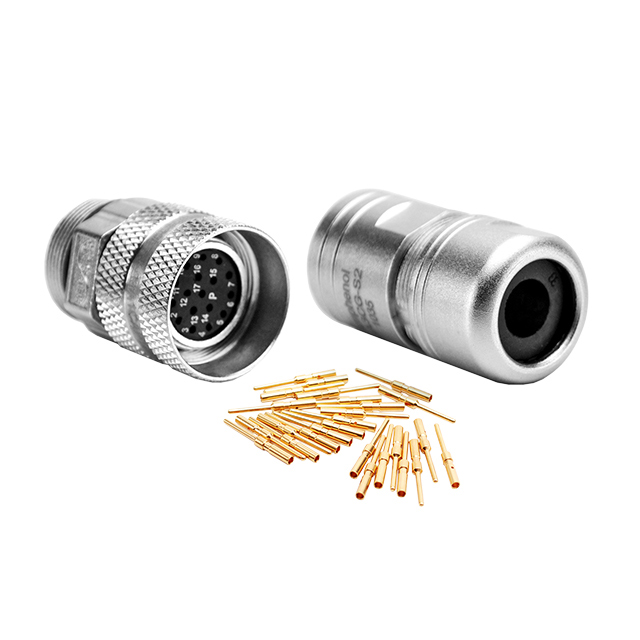

MA1CAP1700M-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 17POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MA1CAP1700M-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 17POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA1CAP1700M-KIT

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	9 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	P
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Termination	Crimp
Voltage Rating	125 VAC

MA1CAP Series

Part	Termination	Current Rating (Amps)	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Connector Type	Voltage Rating	Number of Positions	Ingress Protection	Shell Finish	Shielding	Primary Material	Contact Finish - Mating	Shell Size - Insert	Orientation	Contact Shape	Insert Material	Material Flammability Rating	Housing Color	Features	Contact Size	Contact Type	Type	Note
Amphenol Sine Systems Corp MA1CAP1200M-KIT	Crimp	10 A	Zinc Die Cast	-20 C	130 °C	Silver	Free Hanging (In-Line)	Male Pins Plug	160 V	12	IP67 - Dust Tight Waterproof	Nickel	Shielded	Metal	Gold	M23-12	P
Amphenol Sine Systems Corp MA1CAP1700			Zinc Die Cast	-20 C	130 °C		Free Hanging (In-Line)	Plug Housing			IP67 - Dust Tight Waterproof	Nickel	Shielded			M23-17	P	Circular	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Coupling Nut	1 mm	Crimp	For Female Sockets or Male Pins	Contacts Not Included
Amphenol Sine Systems Corp MA1CAP1700-KIT	Crimp	9 A	Zinc Die Cast	-20 C	130 °C	Silver	Free Hanging (In-Line)	Female Sockets Plug	125 VAC		IP67 - Dust Tight Waterproof	Nickel	Shielded	Metal	Gold	M23-17	P
Amphenol Sine Systems Corp MA1CAP1200-KIT	Crimp	10 A	Zinc Die Cast	-20 C	130 °C	Silver	Free Hanging (In-Line)	Female Sockets Plug	160 V	12	IP67 - Dust Tight Waterproof	Nickel	Shielded	Metal	Gold	M23-12	P
Amphenol Sine Systems Corp MA1CAP1700M-KIT	Crimp	9 A	Zinc Die Cast	-20 C	130 °C	Silver	Free Hanging (In-Line)	Male Pins Plug	125 VAC		IP67 - Dust Tight Waterproof	Nickel	Shielded	Metal	Gold	M23-17	P
Amphenol Sine Systems Corp MA1CAP1900			Zinc Die Cast	-20 C	130 °C		Free Hanging (In-Line)	Plug Housing		19	IP67 - Dust Tight Waterproof	Nickel	Shielded			M23-19	P	Circular	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Coupling Nut	1 mm	Crimp	For Female Sockets or Male Pins	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MA1CAP Series

17 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
