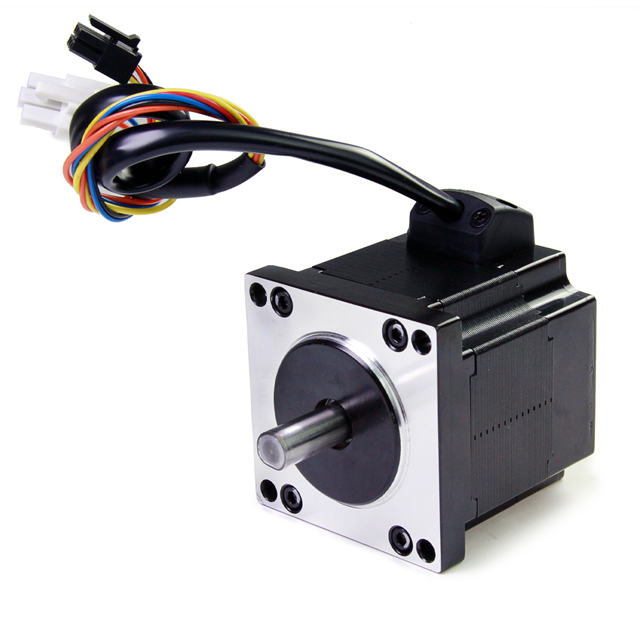

BL23E22-02-RO

Active

LIN ENGINEERING

BLDC MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

BLDC MOTOR

Technical Specifications

Parameters and characteristics for this part

Specification	BL23E22-02-RO

Approval Agency	CE
Diameter - Shaft [diameter]	0.315 in
Diameter - Shaft [diameter]	8 mm
Function	Standard
Length - Shaft and Bearing [x]	0.831 in
Length - Shaft and Bearing [x]	21.1 mm
Motor Type	Brushless (BLDC)
Mounting Hole Spacing	47.2 mm
Mounting Hole Spacing	1.858 in
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Power - Rated	60 W
RPM	4000 RPM
Size / Dimension [x]	56.2 mm
Size / Dimension [x]	2.213 in
Size / Dimension [y]	56.2 mm
Size / Dimension [y]	2.213 in
Torque - Max Momentary (oz-in / mNm)	290 mNm
Torque - Max Momentary (oz-in / mNm)	41.07 oz-in
Torque - Rated (oz-in / mNm)	20.53 oz-in
Torque - Rated (oz-in / mNm)	144.97 mNm
Type	DC Motor
Voltage - Rated [custom]	48 VDC

Part	Approval Agency	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Power - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Mounting Hole Spacing	Mounting Hole Spacing	Motor Type	Type	Voltage - Rated [custom]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
LIN ENGINEERING BL23E22-02-RO	CE	290 mNm	41.07 oz-in	0.315 in	8 mm	50 °C	-20 C	4000 RPM	60 W	20.53 oz-in	144.97 mNm	47.2 mm	1.858 in	Brushless (BLDC)	DC Motor	48 VDC	0.831 in	21.1 mm	Standard	56.2 mm	56.2 mm	2.213 in	2.213 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.30

General part information

Brushless (BLDC) DC Motor Standard 4000 RPM 60W 48VDC
