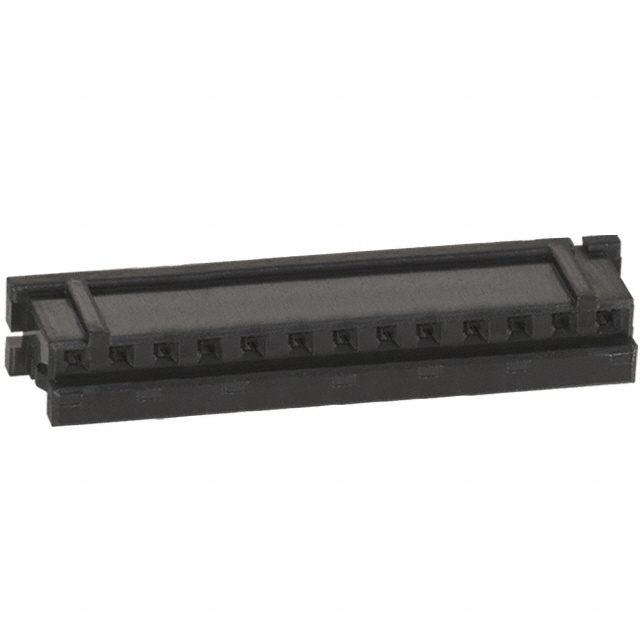

DF3-13S-2C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 13POS 2.00MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 13POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions Loaded	Insulation Material	Connector Type	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Material Flammability Rating	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Mated Stacking Heights [z]	Voltage Rating	Contact Termination	Note	Pitch [x]	Pitch [x]	Color
Hirose Electric USA, Inc. DF3-13S-2DSA(25)	All	Nylon Polyamide (PA)	Receptacle	Square	Phosphor Bronze	0.118 in	3 mm	3 A	UL94 V-0	1	Tin	-30 ░C	85 °C	Board to Board Cable	Solder	Female Socket	13	78.7 µin	2 µm	0.079 in	2 mm	Black	2 çm	78.7 çin	Friction Lock	5.9 mm	0.232 in	Through Hole	6.6 mm 7.5 mm	30 VAC
Hirose Electric USA, Inc. DF3-13S-2C		Nylon Polyamide (PA)	Receptacle							1		-55 °C	105 ░C			Female Socket	13											Free Hanging (In-Line)			Crimp	Contacts Not Included	0.079 in	2 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.15

General part information

13 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
