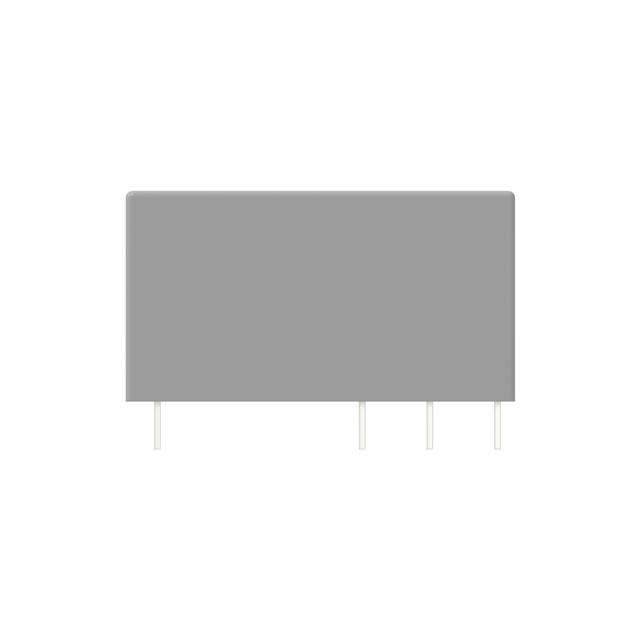

1415400-1

Active

TE Connectivity Potter & Brumfield Relays

RT423009

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RT423009

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Load - Max Switching	Relay Type	Mounting Type	Contact Material	Contact Form	Switching Voltage [Max]	Coil Resistance	Must Operate Voltage	Coil Voltage	Coil Insulation	Seal Rating	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Must Release Voltage	Coil Current	Contact Rating (Current)	Release Time	Coil Type
TE Connectivity Potter & Brumfield Relays 1415400-1	8 ms	3200 VA	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	DPDT (2 Form C)	400 VAC	200 Ohms	6.3 VDC	9 VDC	Class F	Sealed - Flux Protection	PC Pin	-40 °C	70 °C	CQC CSA cURus VDE	0.9 VDC	45 mA	8 A	6 ms	Non Latching
TE Connectivity Potter & Brumfield Relays 5-1415400-1	8 ms	4800 VA	General Purpose	Through Hole	Silver Nickel (AgNi)	SPDT (1 Form C)	400 VAC	1440 Ohms	16.8 VDC	24 VDC	Class F	Sealed - Flux Protection	PC Pin	-40 °C	85 °C	CQC CSA cURus VDE	2.4 VDC	16.7 mA	12 A	6 ms	Latching Dual Coil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 5.03

General part information

General Purpose Relay DPDT (2 Form C) 9VDC Coil Through Hole
