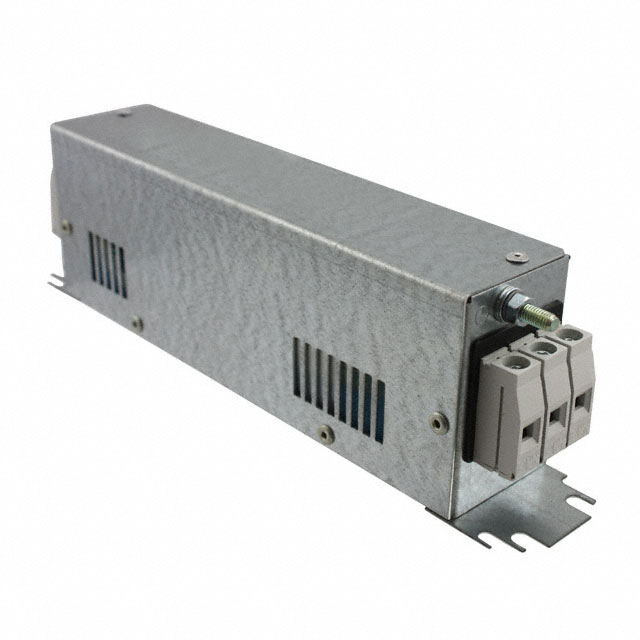

FMAC-091G-H210

Active

SCHURTER Inc.

LINE FILTER 480VAC 150A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMAC-091G-H210

Active

SCHURTER Inc.

LINE FILTER 480VAC 150A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FMAC-091G-H210

Applications	Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC
Configuration	Single Stage
Current	150 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	480 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V

FMAC Series

Part	Filter Type	Operating Temperature [custom]	Configuration	Termination Style	Inductance	Approval Agency	Applications	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Voltage - Rated AC
SCHURTER Inc. FMAC-0932-1610	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	6 mH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	16 A	520 V	480 V
SCHURTER Inc. FMAC-0956-H310	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	300 µH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	250 A	520 V	480 V
SCHURTER Inc. FMAC-0932-3610L	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	1.5 mH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	36 A	520 V	480 V
SCHURTER Inc. FMAC-091D-3610	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	570 µH	cURus ENEC VDE	Inverters Power Drive Systems	Chassis Mount	60 Hz	50 Hz	36 A			480 V
SCHURTER Inc. FMAC-0954-H112I	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	700 µH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	110 A	520 V	480 V
SCHURTER Inc. FMAC-091C-2510	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	450 µH	cURus ENEC VDE	Inverters Power Drive Systems	Chassis Mount	60 Hz	50 Hz	25 A			480 V
SCHURTER Inc. FMAC-0934-6410L	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	600 µH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	64 A	520 V	480 V
SCHURTER Inc. FMAC-091G-H210	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	480 µH	cURus ENEC VDE	Inverters Power Drive Systems	Chassis Mount	60 Hz	50 Hz	150 A			480 V
SCHURTER Inc. FMAC-0957-H650	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Post	200 µH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	550 A	520 V	480 V
SCHURTER Inc. FMAC-0956-H312I	Three Phase (Delta)	-25 °C 100 °C	Single Stage	Terminal Block	300 µH	cURus ENEC VDE	Photovoltaic Inverter	Chassis Mount	60 Hz	50 Hz	250 A	520 V	480 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 575.34

Description

General part information

FMAC Series

Three Phase (Delta) EMC/EMI Line Filter 150 A 480V 50/60Hz Single Stage Terminal Block
