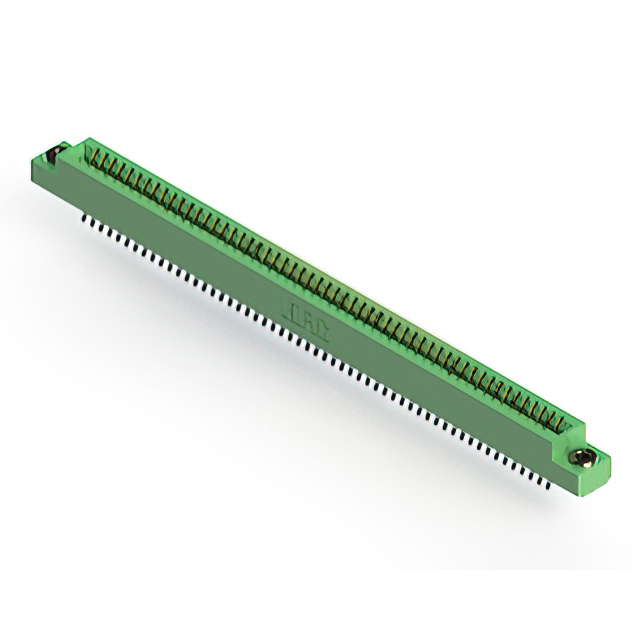

341-110-555-203
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-110-555-203
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-110-555-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 110 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-110 Series
| Part | Pitch [x] | Pitch [x] | Termination | Number of Positions | Card Type | Termination Rows | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Color | Gender | Mounting Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Diallyl Phthalate (DAP) | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | ||||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Board Edge Straddle Mount | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Board Edge Straddle Mount | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Diallyl Phthalate (DAP) | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder Eyelet(s) | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Board Edge Straddle Mount | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 110 positions | Non Specified - Dual Edge | 2 | Gold | Dual | 10 Áin | 0.25 Ám | Green | Female | Through Hole | Polyester Thermoplastic | 55 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 24.59 | |
Description
General part information
341-110 Series
110 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
