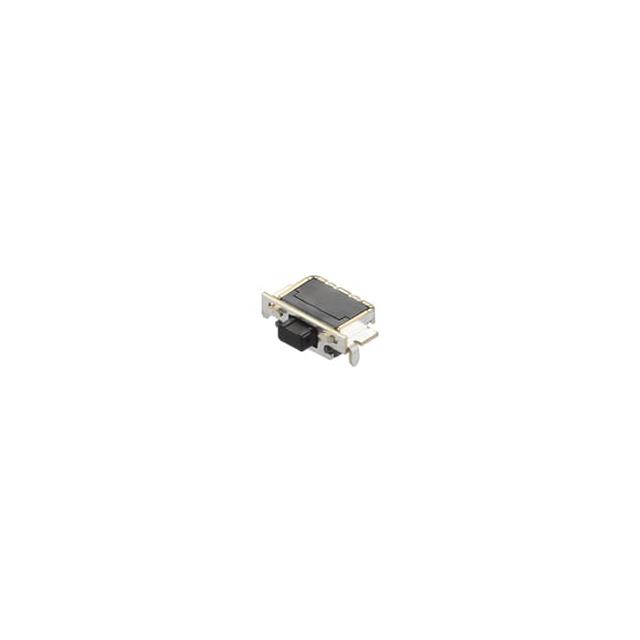

SKTGLBE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKTGLBE010

Actuator Length, Right Angle [x]	1.55 mm
Actuator Orientation	Side Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	163 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	5.2 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	J Lead

Part	Actuator Type	Contact Rating @ Voltage	Outline [y]	Outline [x]	Actuator Length, Right Angle [x]	Illumination	Mounting Type	Switch Travel	Actuator Orientation	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mechanical Life	Ingress Protection	Switch Function	Operating Force
Alps Alpine SKTGLBE010	Rectangular Button	0.05 A 12 VDC	3.5 mm	5.2 mm	1.55 mm	Non-Illuminated	Surface Mount Right Angle	0.15 mm	Side Actuated	SPST-NO	-30 ░C	85 °C	J Lead	200000 Cycles	IP67 - Dust Tight Waterproof	Off-Mom	163 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle

Technical documentation and resources

No documents available
