AP43771VFBZ-13
ActiveDiodes Inc
USB PD CONTROLLER SUPPORTING FULL PPS RANGE (3.3.~21V)
Deep-Dive with AI
Search across all available documentation for this part.
AP43771VFBZ-13
ActiveDiodes Inc
USB PD CONTROLLER SUPPORTING FULL PPS RANGE (3.3.~21V)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP43771VFBZ-13 |
|---|---|
| Current - Supply | 6 mA |
| Function | Controller |
| Interface | USB, I2C |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

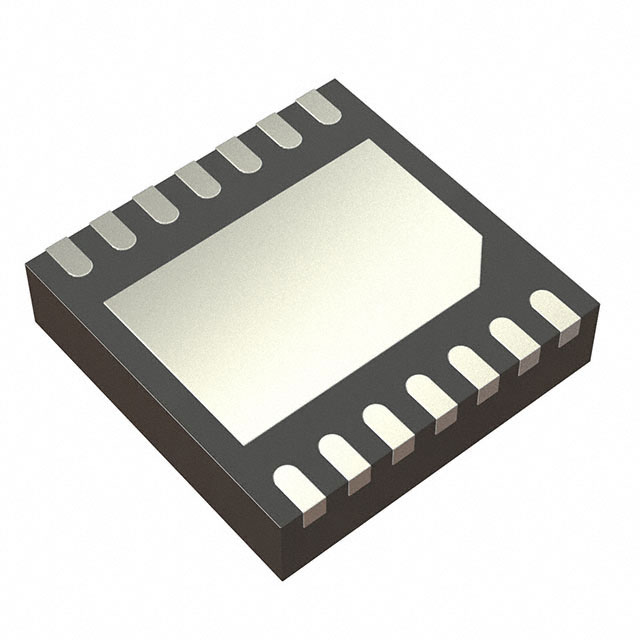

| Package / Case | 14-WFDFN Exposed Pad |
| Protocol | I2C |
| Standards | USB 3.0 |
| Supplier Device Package | W-DFN3030-14 (Type A1) |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.74 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.78 | |||
| 25 | $ 0.74 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 3000 | $ 0.46 | ||
Description
General part information
AP43771V Series
The AP43771V is a highly integrated USB Type-C ® power delivery controller targeted for USB Type-C adapter and charger application. It is compatible with Qualcomm® QC4/4+/QC5 protocol, which supports USB power delivery specification Rev3.1 V1.2 (including optional PPS support).
Documents
Technical documentation and resources
