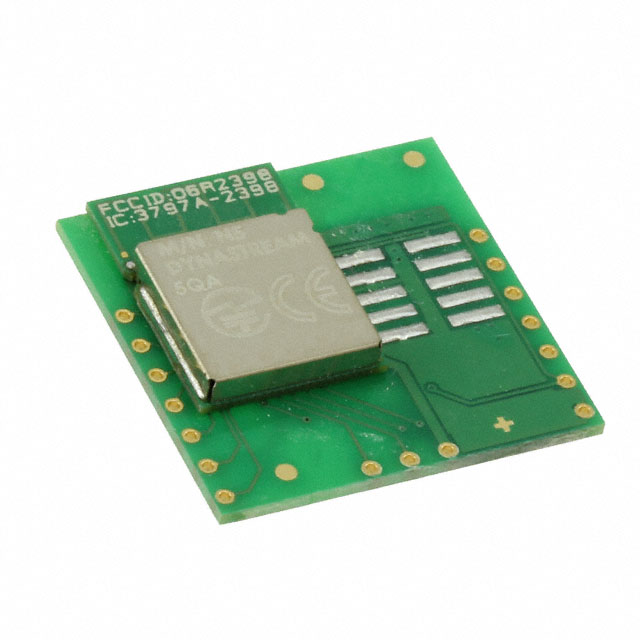

N550M4CC-TRAY
ObsoleteDynastream Innovations
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N550M4CC-TRAY
ObsoleteDynastream Innovations
RF TXRX MOD BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N550M4CC-TRAY |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 16 mA |
| Current - Transmitting | 16 mA |
| Data Rate | 60 kbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 16 kB |
| Memory Size [custom] | 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 17-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v4.1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | nRF51422 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N550M4 Series
Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
