Q-0400Q0005006i

Active

Amphenol Custom Cable

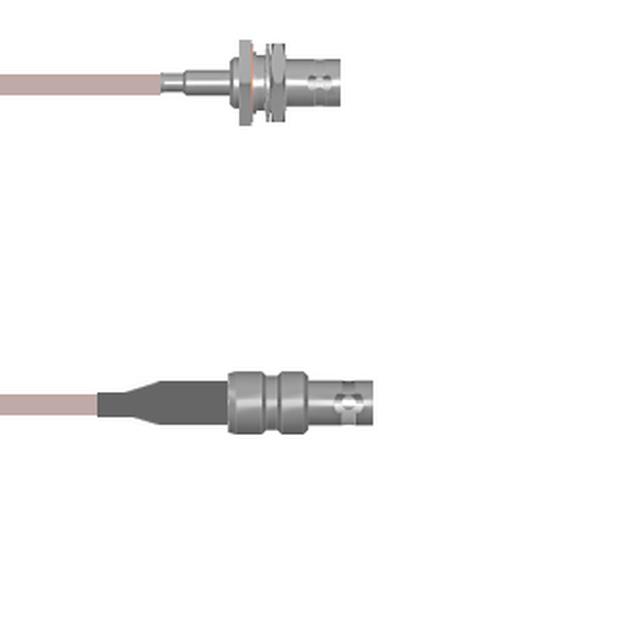

CBL ASSY BNC-HDBNC JACK-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0400Q0005006i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0400Q0005006i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0400Q0 Series

Part	1st Connector Mounting Type	Overall Impedance	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	Style	Color	1st Connector	Cable Type	Features	2nd Contact Gender	1st Connector Mounting Feature	1st Contact Gender	Length [x]	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0400Q0003012i	Panel Mount	50 Ohms	12 "	304.8 mm	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0400Q0003018i	Panel Mount	50 Ohms			Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0400Q0005.25M	Panel Mount	50 Ohms			Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Copper	BNC Jack	RG-316	Shielded	Female	Bulkhead - Front Side Nut	Female		250 mm	9.843 "
Amphenol Custom Cable Q-0400Q0003024i	Panel Mount	50 Ohms	24 "	609.6 mm	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0400Q0003003M	Panel Mount	50 Ohms	118.1 in	3 m	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female				9.8 '
Amphenol Custom Cable Q-0400Q0003036i	Panel Mount	50 Ohms	36 in	91.44 cm	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0400Q0005060i	Panel Mount	50 Ohms	5 '	1.5 m	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Copper	BNC Jack	RG-316	Shielded	Female	Bulkhead - Front Side Nut	Female				5 ft
Amphenol Custom Cable Q-0400Q0005009i	Panel Mount	50 Ohms	9 "	228.6 mm	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Copper	BNC Jack	RG-316	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0400Q0005006i	Panel Mount	50 Ohms	6 in	152.4 mm	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Copper	BNC Jack	RG-316	Shielded	Female	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-0400Q0003060i	Panel Mount	50 Ohms	5 '	1.5 m	Free Hanging (In-Line)	4 GHz	BNC to HD-BNC	Black	BNC Jack	RG-174	Shielded	Female	Bulkhead - Front Side Nut	Female				5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 143.78
		25	$ 140.99
		50	$ 138.20
		100	$ 135.40
		250	$ 132.61

Description

General part information

Q-0400Q0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
