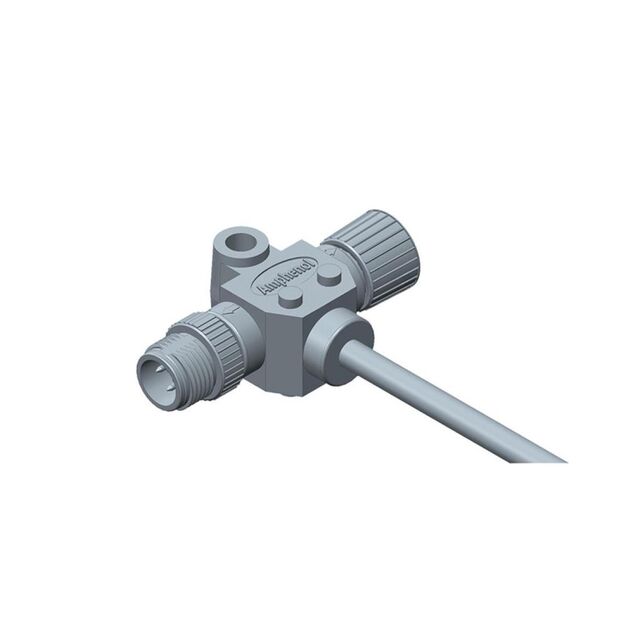

SS-030300-MF0-TSA10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, T CABLE, METAL, A CODING, 4A, 03 PINS, (END 1) MALE MALE, (END 2) FEMALE FEMALE, SCREW THREAD, LENGTH

Deep-Dive with AI

Search across all available documentation for this part.

SS-030300-MF0-TSA10

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, T CABLE, METAL, A CODING, 4A, 03 PINS, (END 1) MALE MALE, (END 2) FEMALE FEMALE, SCREW THREAD, LENGTH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-030300-MF0-TSA10

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle, Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	T-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Shielding	Unshielded
Usage	Industrial Environments

SS-030300 Series

Part	Shielding	Cable Material	1st Connector Type	1st Connector Mounting Type	1st Connector Gender	Ingress Protection	1st Connector Orientation [custom]	Assembly Configuration	Cable Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Usage	Color	Length [x]	Length [x]	2nd Connector Type
Amphenol LTW SS-030300-MF0-TSA05	Unshielded	Polyvinyl Chloride (PVC)	Plug Right Angle Receptacle Right Angle	Free Hanging (In-Line)	Female Sockets Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black	1.64 ft	500 mm	Wire Leads
Amphenol LTW SS-030300-MM0-TSA10	Unshielded	Polyvinyl Chloride (PVC)	Receptacle Right Angle (2)	Free Hanging (In-Line)	Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black			Wire Leads
Amphenol LTW SS-030300-MF0-TSA10	Unshielded	Polyvinyl Chloride (PVC)	Plug Right Angle Receptacle Right Angle	Free Hanging (In-Line)	Female Sockets Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black			Wire Leads
Amphenol LTW SS-030300-MM0-TSA02	Unshielded	Polyvinyl Chloride (PVC)	Receptacle Right Angle (2)	Free Hanging (In-Line)	Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black	6.56 ft	2 m	Wire Leads
Amphenol LTW SS-030300-MF0-TSA02	Unshielded	Polyvinyl Chloride (PVC)	Plug Right Angle Receptacle Right Angle	Free Hanging (In-Line)	Female Sockets Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black	6.56 ft	2 m	Wire Leads
Amphenol LTW SS-030300-MM0-TSA01	Unshielded	Polyvinyl Chloride (PVC)	Receptacle Right Angle (2)	Free Hanging (In-Line)	Male Pins	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black	3.28 ft	1 m	Wire Leads
Amphenol LTW SS-030300-FF0-TSA05	Unshielded	Polyvinyl Chloride (PVC)	Plug Right Angle (2)	Free Hanging (In-Line)	Female Sockets	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black	1.64 ft	500 mm	Wire Leads
Amphenol LTW SS-030300-FF0-TSA10	Unshielded	Polyvinyl Chloride (PVC)	Plug Right Angle (2)	Free Hanging (In-Line)	Female Sockets	IP68 - Dust Tight Waterproof; NMEA 2000	Keyed	T-Adapter on One End	Round	M12	All	3	Industrial Environments	Black			Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 24.40
Newark	Each	10	$ 22.59
		25	$ 21.03
		50	$ 19.32
		100	$ 19.04
		250	$ 18.75

Description

General part information

SS-030300 Series

Circular Cable Assembly Unshielded 32.8' (10.00m)

Documents

Technical documentation and resources

No documents available
