UPD78F0500AMC-5A4-A
ObsoleteRenesas Electronics Corporation
IC MCU 8BIT 8KB FLASH 30LSSOP
Deep-Dive with AI
Search across all available documentation for this part.
UPD78F0500AMC-5A4-A
ObsoleteRenesas Electronics Corporation
IC MCU 8BIT 8KB FLASH 30LSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPD78F0500AMC-5A4-A |
|---|---|
| Connectivity | LINbus, 3-Wire SIO, UART/USART, I2C |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Data Converters | A/D 4x10b SAR |
| Mounting Type | Surface Mount |
| Number of I/O | 23 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External, Internal |

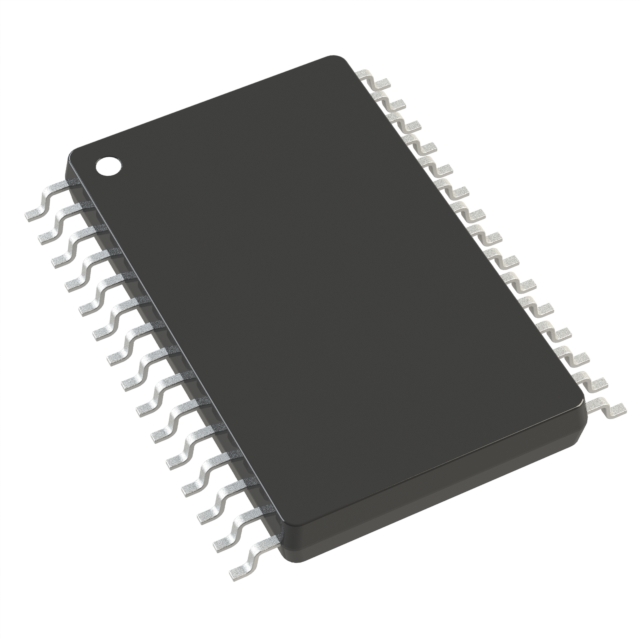

| Package / Case | 30-LSSOP |
| Package / Case | 0.24 in |
| Package / Case | 6.1 mm |
| Peripherals | LVD, WDT, PWM, POR |
| Program Memory Type | FLASH |
| RAM Size | 512 |
| Speed | 20 MHz |
| Supplier Device Package | 30-LSSOP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UPD780500 Series
78K/0 78K0/Kx2 Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 30-LSSOP
Documents
Technical documentation and resources
No documents available
