100G0111-1.00-0

Active

TE Connectivity Raychem Cable Protection

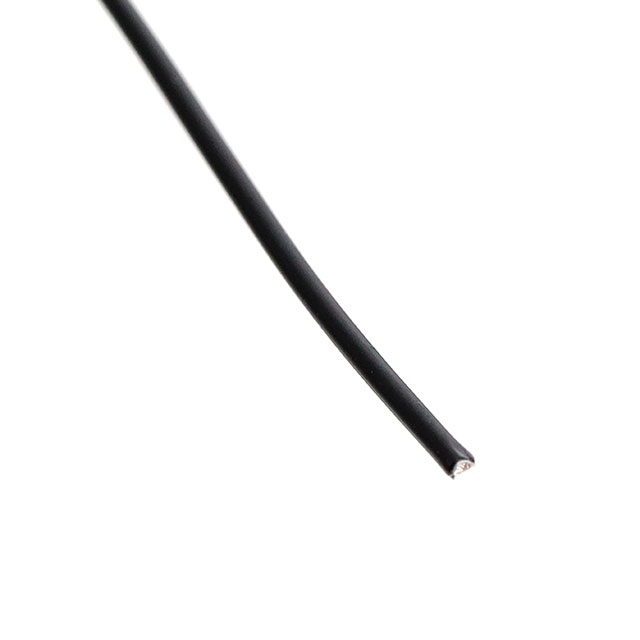

HOOK-UP DL STRND 18AWG BLK FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100G0111-1.00-0

Active

TE Connectivity Raychem Cable Protection

HOOK-UP DL STRND 18AWG BLK FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100G0111-1.00-0

Cable Type	Hook-Up, Dual Wall
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [diameter]	0.0098 in
Jacket (Insulation) Diameter [diameter]	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm
Jacket (Insulation) Material	Polymer
Jacket (Insulation) Thickness	0.2 mm
Jacket (Insulation) Thickness	0.008 in
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Operating Temperature	125 °C
Spool Size	3000 m
Spool Size	9843 ft
Voltage [Max]	1300 V
Voltage [Min]	750 V
Wire Gauge	18 AWG

100G0111 Series

Part	Conductor Material	Jacket (Insulation) Material	Jacket Color	Cable Type	Voltage [Min]	Voltage [Max]	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Spool Size	Spool Size	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size
TE Connectivity Raychem Cable Protection 100G0111-3.00-0	Copper Tinned	Polymer	Black	Hook-Up Dual Wall	750 V	1300 V	3281 ft	1000 m	0.109 "	2.77 mm	125 °C	12 AWG	0.25 mm	0.01 in	0.0126 in	37
TE Connectivity Raychem Cable Protection 100G0111-0.50-9	Copper Tinned			Hook-Up	750 V	1300 V			0.055 in	1.4 mm	125 °C		0.2 mm	0.008 in	0.0071 in	19 Strands
TE Connectivity Raychem Cable Protection 100G0111-0.50-0	Copper Tinned	Polymer	Black	Hook-Up	750 V	1300 V	4921.3 ft	1500 m	0.055 in	1.4 mm	125 °C		0.2 mm	0.008 in	0.0071 in	19 Strands
TE Connectivity Raychem Cable Protection 100G0111-1.00-2	Copper Tinned	Polymer	Red	Hook-Up Dual Wall	750 V	1300 V	3281 ft	1000 m	0.069 in	1.75 mm	125 °C	18 AWG	0.2 mm	0.008 in	0.0098 in		19
TE Connectivity Raychem Cable Protection 100G0111-1.00-9	Copper Tinned	Polymer		Hook-Up Dual Wall	750 V	1300 V			0.069 in	1.75 mm	125 °C	18 AWG	0.2 mm	0.008 in	0.0098 in		19
TE Connectivity Raychem Cable Protection 100G0111-0.50-45	Copper Tinned		Green Yellow	Hook-Up	750 V	1300 V			0.055 in	1.4 mm	125 °C		0.2 mm	0.008 in	0.0071 in	19 Strands
TE Connectivity Raychem Cable Protection 100G0111-0.25-0	Copper Tinned	Polymer	Black	Hook-Up Dual Wall	750 V	1300 V			0.045 "	1.14 mm	125 °C	24 AWG	0.2 mm	0.008 in	0.0051 in		19	Enter Number of Feet in Order Quantity	3000 m	9843 ft
TE Connectivity Raychem Cable Protection 100G0111-1.00-0	Copper Tinned	Polymer	Black	Hook-Up Dual Wall	750 V	1300 V			0.069 in	1.75 mm	125 °C	18 AWG	0.2 mm	0.008 in	0.0098 in		19	Enter Number of Feet in Order Quantity	3000 m	9843 ft
TE Connectivity Raychem Cable Protection 100G0111-2.50-8	Copper Tinned	Polymer	Gray	Hook-Up Dual Wall	750 V	1300 V			0.1 in	2.54 mm	125 °C	13 AWG	0.25 mm	0.01 in	0.0114 in	37
TE Connectivity Raychem Cable Protection 100G0111-2.50-9	Copper Tinned	Polymer		Hook-Up Dual Wall					0.1 in	2.54 mm		13 AWG	0.25 mm	0.01 in	0.0114 in	37		Enter Number of Feet in Order Quantity	1640.4 ft		1300 V	-55 °C	125 °C	500 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 1.11
		3	$ 1.02
		5	$ 0.99
		7	$ 0.97
		10	$ 0.94
		25	$ 0.88
		50	$ 0.84
		100	$ 0.80

Description

General part information

100G0111 Series

18 AWG Hook-Up, Dual Wall Wire 19/0.0098" Black 750/1300V Enter Number of Feet in Order Quantity
