1627SEA

Active

Hammond Manufacturing

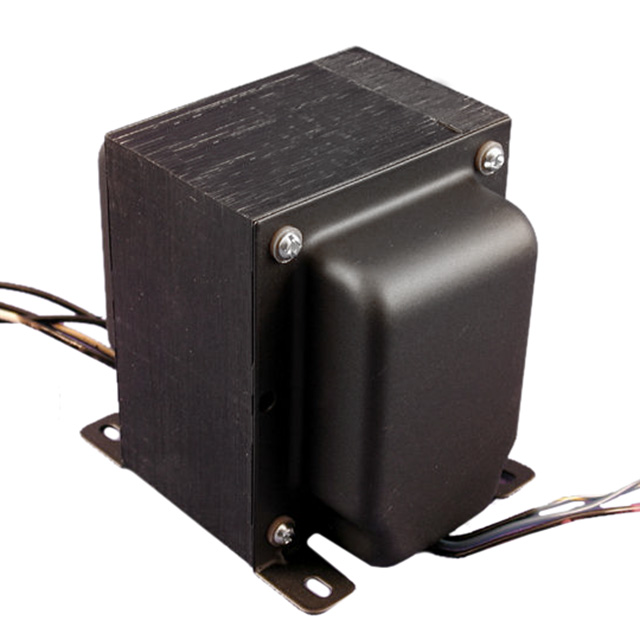

XFMR 2.5K / 4, 8, 16 CHAS MNT

Search across all available documentation for this part.

Active

Hammond Manufacturing

XFMR 2.5K / 4, 8, 16 CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1627SEA

DC Resistance (DCR) - Primary	30 Ohm, 47.44 Ohm
DC Resistance (DCR) - Secondary [custom]	700 mOhm, 502 mOhm, 402 mOhm
Frequency Range [Max]	20 kHz
Frequency Range [Min]	20 Hz
Frequency Response	1 dB
Height - Seated (Max) [Max] [z]	115.82 mm
Height - Seated (Max) [Max] [z]	4.56 in
Impedance - Primary (Ohms)	2.5k
Impedance - Secondary (Ohms)	16 Ohms, 8 Ohms, 4 Ohms
Insertion Loss	1 dB
Mounting Type	Chassis Mount
Power Level	30 W
Size / Dimension [x]	4.5 in
Size / Dimension [x]	114.3 mm
Size / Dimension [y]	3.75 "
Size / Dimension [y]	95.25 mm
Termination Style	Wire Leads
Transformer Type	Single Ended Audiophile, Ultra-Linear - Tube Output
Voltage - Isolation	2828 VDC
Weight	11 lbs
Weight	5 kg

Part	Weight	Weight	Insertion Loss	Frequency Response	DC Resistance (DCR) - Primary	Power Level	DC Resistance (DCR) - Secondary [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Impedance - Primary (Ohms)	Frequency Range [Min]	Frequency Range [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Transformer Type	Termination Style	Impedance - Secondary (Ohms)
Hammond Manufacturing 1627SEA	11 lbs	5 kg	1 dB	1 dB	30 Ohm 47.44 Ohm	30 W	402 mOhm 502 mOhm 700 mOhm	3.75 "	4.5 in	95.25 mm	114.3 mm	2828 VDC	Chassis Mount	2.5k	20 Hz	20 kHz	115.82 mm	4.56 in	Single Ended Audiophile Ultra-Linear - Tube Output	Wire Leads	4 Ohms 8 Ohms 16 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.5k Impedance Primary Ohms 4, 8, 16 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Chassis Mount
