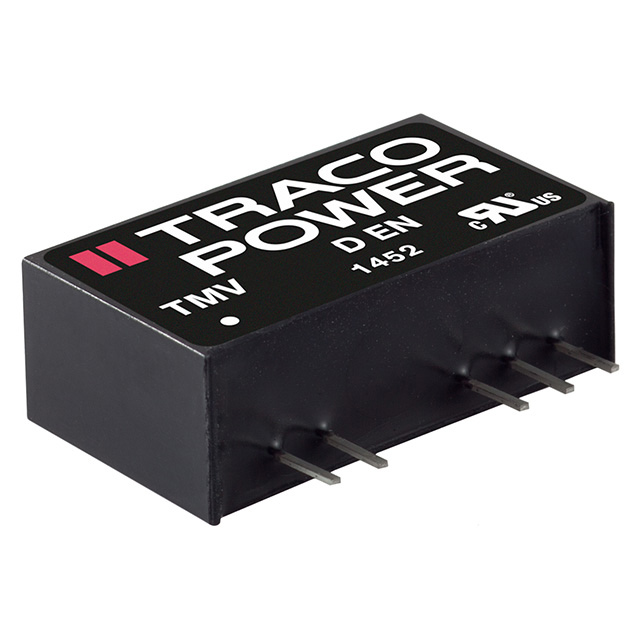

TMV 1212DEN

Active

Traco Power

DC DC CONVERTER +/-12V 1W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER +/-12V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Package / Case	Type	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Output 2	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Traco Power TMV 1212DEN	SCP	7-SIP Module 5 Leads	Isolated Module	10.8 V	ITE (Commercial)	13.2 V	40 mA	40 mA	3000 V	74 %	0.49 in	0.87 in	22 mm	12.5 mm	0.3 "	7.5 mm	2	-12 V	Through Hole	12 V	85 °C	-25 °C
Traco Power TMV 1212DHI	SCP	7-SIP Module 5 Leads	Isolated Module	10.8 V	ITE (Commercial)	13.2 V			5.2 kV	78 %	0.4 "	0.77 in	19.5 mm	10.2 mm	0.3 "	7.5 mm	2	-12 V	Through Hole	12 V	95 °C	-40 °C	42 mA	42 mA
Traco Power TMV 1212D	SCP	7-SIP Module 5 Leads	Isolated Module		ITE (Commercial)	13.2 V	40 mA	40 mA	3000 V	74 %	0.4 "	0.77 in	19.5 mm	10.2 mm	0.24 "	6.1 mm	2	-12 V	Through Hole	12 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 40mA, 40mA 10.8V - 13.2V Input
