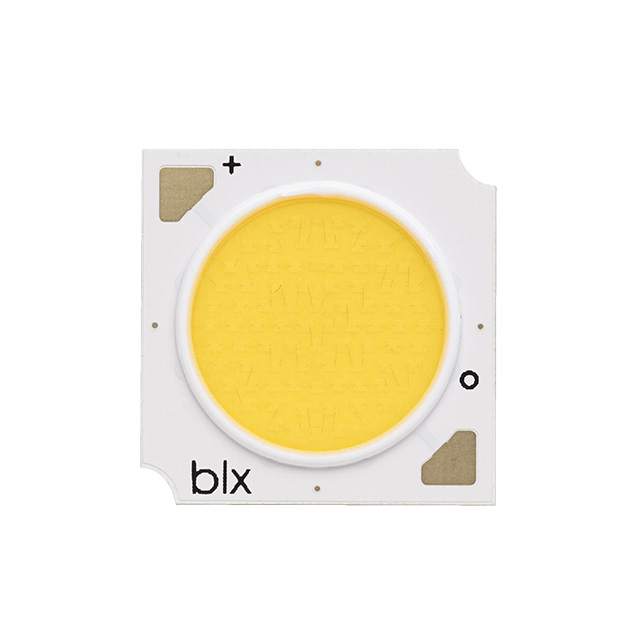

BXRE-25E2000-C-74

Active

BRIDGELUX

LED COB V13 WARM WHT SQU 2500K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V13 WARM WHT SQU 2500K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-25E2000-C-74

CCT (K)	2500 K
CCT (K)	4-Step MacAdam Ellipse
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.26 A
Current - Test	630 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14 mm
Lumens/Watt @ Current - Test	139 lm/W
Luminous Flux @ Current/Temperature	3037 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	34.8 V

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Lumens/Watt @ Current - Test	Lens Type	Temperature - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Color	CRI (Color Rendering Index)	Type	Height [z]	Viewing Angle	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	CCT (K)	CCT (K)	Configuration
BRIDGELUX BXRE-25E4000-B-74	24 mm	24 mm	1.8 A	127 lm/W	Flat	85 °C	900 mA	34 V	Warm White	80	Chip On Board (COB)	1.7 mm	120 °	3900 lm	19.2 mm	2500 K	4-Step MacAdam Ellipse	Square
BRIDGELUX BXRE-25E2000-C-74	19 mm	19 mm	1.26 A	139 lm/W	Flat		630 mA	34.8 V	Warm White	80	Chip On Board (COB)	1.7 mm	120 °	3037 lm	14 mm	2500 K	4-Step MacAdam Ellipse	Square
BRIDGELUX BXRE-25E6500-D-74	28 mm	28 mm	2.8 A	131 lm/W	Flat	85 °C		33.4 V	Warm White	80	Chip On Board (COB)	1.7 mm	120 °	6140 lm	22.6 mm	2500 K	4-Step MacAdam Ellipse	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 4.63

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V13 Array White, Warm Square
