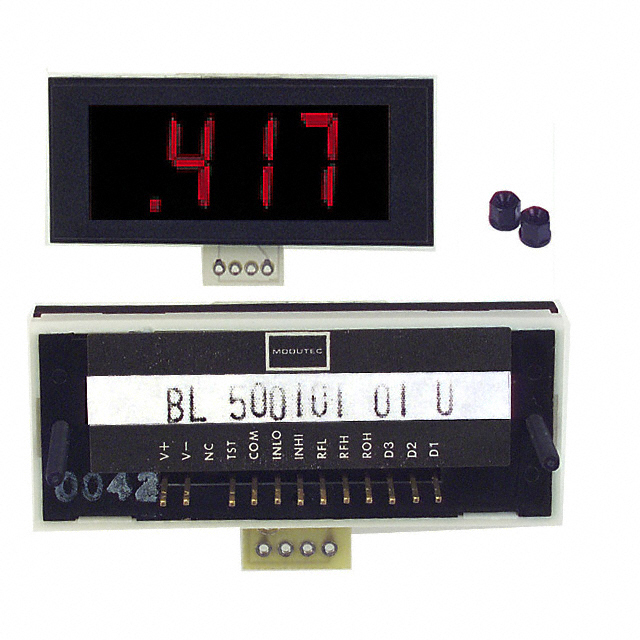

BL-500101-01-U

Unknown

Jewell Instruments LLC

VOLTMETER 200MVDC LCD PANEL MT

Search across all available documentation for this part.

Unknown

Jewell Instruments LLC

VOLTMETER 200MVDC LCD PANEL MT

Technical Specifications

Parameters and characteristics for this part

Specification	BL-500101-01-U

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Red Characters, Backlight
Measuring Range [Max]	0.2 VDC
Measuring Range [Min]	-200 mV
Measuring Type	Voltage
Mounting Type	Panel Mount - Window
Number of Characters Per Row	3.5
Panel Cutout Dimensions [x]	58.24 mm
Panel Cutout Dimensions [y]	22.23 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	9 V

Part	Type	Measuring Range [Min]	Measuring Range [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Mounting Type	Voltage - Supply	Termination Style	Display Type
Jewell Instruments LLC BL-500101-01-U	Voltmeter	-200 mV	0.2 VDC	22.23 mm	58.24 mm	3.5	0.5 in	12.7 mm	Voltage	Panel Mount - Window	9 V	PC Pin	LCD - Red Characters Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.58

General part information

Voltmeter LCD - Red Characters, Backlight Display Panel Mount - Window
