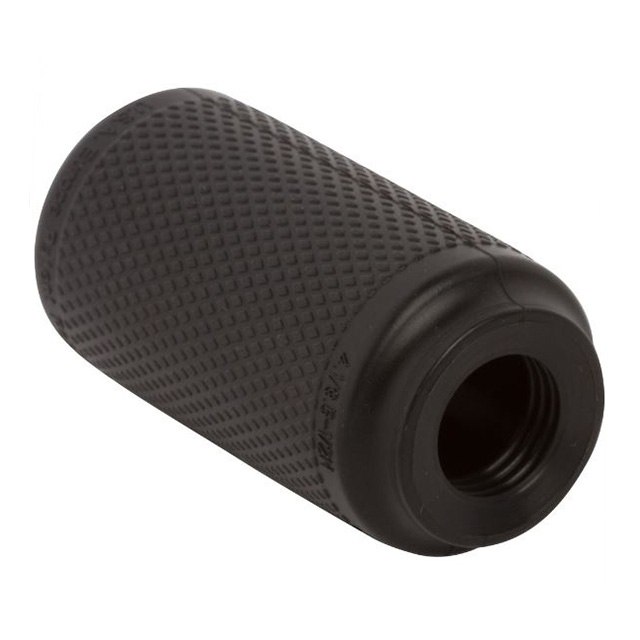

431-10002
ActiveAmphenol RF
4.3-10 BOOT
Deep-Dive with AI
Search across all available documentation for this part.
431-10002
ActiveAmphenol RF
4.3-10 BOOT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 431-10002 |
|---|---|
| Accessory Type | Boot |
| Body Material | Silicone Rubber |
| Color | Black |
| Connector Style [Max] | 9.5 |
| Connector Style [Min] | 4.1 |
| Features | IP67 |
| For Use With/Related Products | 4.1/9.5 Jacks |
431 Series
| Part | Features | Number of Ports | Mating Cycles | Housing Color | Ingress Protection | Dielectric Material | Body Material | Contact Termination | Frequency - Max [Max] | Cable Group | Cable Group | Center Contact Material | Voltage Rating | Connector Type | Includes | Mounting Feature | Shield Termination | Connector Style | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Center Contact Plating | Accessory Type | For Use With/Related Products | Color | Connector Style [Min] | Connector Style [Max] | Mounting Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Low PIM | 1 | 500 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Solder | 6000 MHz | 0.25 in | RG-401 | Beryllium Copper | 500 V | Female Socket Jack | 1 Connector 1 Contact 1 Spacer | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | |||||||
Amphenol RF | EMI/RFI Gasket Low PIM | 1 | 500 | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Threaded | 6000 MHz | Beryllium Copper | 500 V | Female Socket Receptacle | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | ||||||||||
Amphenol RF | EMI/RFI Gasket Low PIM | 1 | 500 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Solder | 6000 MHz | Beryllium Copper | 500 V | Female Socket Jack | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | ||||||||||
Amphenol RF | Chain IP67 | Brass | 4.3/10 | Nickel | Cap (Cover) | 4.3/10 Jacks | Silver | |||||||||||||||||||||||
Amphenol RF | IP67 | Silicone Rubber | Boot | 4.1/9.5 Jacks | Black | 4.1 | 9.5 | |||||||||||||||||||||||
Amphenol RF | Low PIM | 1 | 500 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Solder | 3 GHz | 0.25 in | RG-401 | Brass | Male Pin Plug | Solder | 4.3/10 | White Bronze | -40 °C | 185 °C | 50 Ohms | Silver | Free Hanging (In-Line) | 0.1 dB | ||||||||
Amphenol RF | EMI/RFI Gasket Low PIM | 1 | 500 | Silver | IP68 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Solder Cup | 6000 MHz | Beryllium Copper | 500 V | Female Socket Jack | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | ||||||||||
Amphenol RF | EMI/RFI Gasket Low PIM | 1 | 500 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Solder | 6000 MHz | Beryllium Copper | 500 V | Female Socket Receptacle | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | ||||||||||
Amphenol RF | EMI/RFI Gasket Low PIM | 1 | 500 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | Threaded | 6000 MHz | Beryllium Copper | 500 V | Female Socket Jack | Flange | Solder | 4.3/10 | White Bronze | -65 ░C | 165 °C | 50 Ohms | Silver | ||||||||||
Amphenol RF | Low PIM | 1 | Silver | IP67 - Dust Tight Waterproof | Polytetrafluoroethylene (PTFE) | Brass | 3 GHz | 0.5 in | Helical | Copper | Male Pin Plug | Clamp | 4.3/10 | White Bronze | -40 °C | 85 °C | 50 Ohms | Silver | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 29.97 | |
Description
General part information
431 Series
Connector Boot For 4.1/9.5 Jacks
Documents
Technical documentation and resources
No documents available
