DSEP2X31-03A

Active

IXYS

DIODE MODULE GP 300V 30A SOT227B

Search across all available documentation for this part.

Active

IXYS

DIODE MODULE GP 300V 30A SOT227B

Technical Specifications

Parameters and characteristics for this part

Specification	DSEP2X31-03A

Current - Average Rectified (Io) (per Diode)	30 A
Current - Reverse Leakage @ Vr	250 µA
Diode Configuration	2 Independent
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C

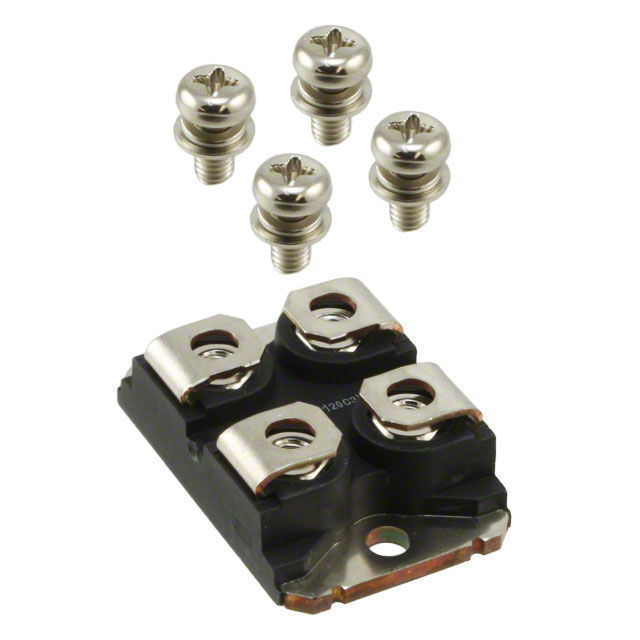

Package / Case	SOT-227-4, miniBLOC
Reverse Recovery Time (trr)	30 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOT-227B
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.23 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Speed	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS DSEP2X31-03A	300 V	Standard	SOT-227-4 miniBLOC	200 mA 500 ns	30 ns	30 A	Chassis Mount	1.23 V	2 Independent	SOT-227B	250 µA	150 °C	-40 °C
IXYS DSEP2X31-06A	600 V	Standard	SOT-227-4 miniBLOC	200 mA 500 ns	30 ns	30 A	Chassis Mount	2.49 V	2 Independent	SOT-227B	250 µA	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 2 Independent 300 V 30A Chassis Mount SOT-227-4, miniBLOC
