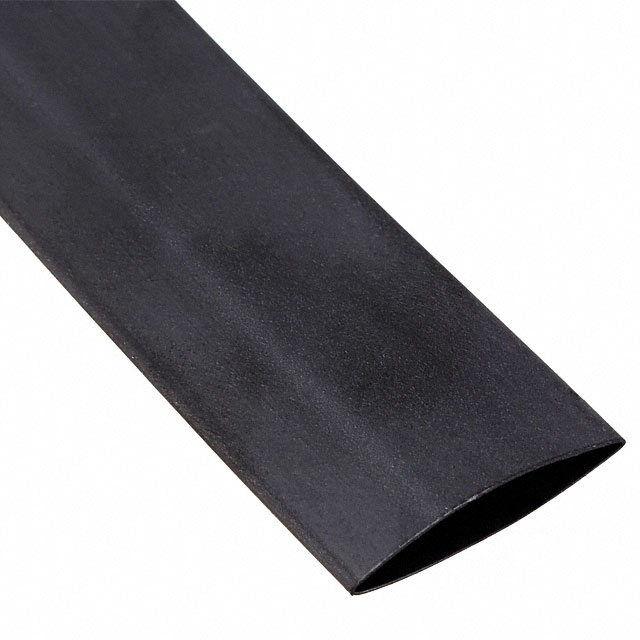

ZH2-18.0-0-FSP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING .748" 1=50M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZH2-18.0-0-FSP-SM

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING .748" 1=50M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZH2-18.0-0-FSP-SM

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	8.99 mm
Inner Diameter - Recovered [diameter]	0.354 in
Inner Diameter - Supplied [diameter]	0.748 in
Inner Diameter - Supplied [diameter]	19 mm
Length	164 ft
Length	50 m
Length [x]	1 m
Length [x]	3.28 ft
Material	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

ZH2 Series

Part	Shrink Temperature	Color	Shrinkage Ratio	Length	Length	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Inner Diameter - Supplied	Inner Diameter - Supplied	Length
TE Connectivity Raychem Cable Protection ZH2-3.0-0-SP-SM	70 °C	Black	2 to 1	4593.4 ft	1400 m	Tubing Flexible	125 °C	-30 ░C	1 m	3.28 ft	1.52 mm	0.06 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.43 mm	0.017 in
TE Connectivity Raychem Cable Protection ZH2-11.0-0-FSP-SM	70 °C	Black	2 to 1			Tubing Flexible	125 °C	-30 ░C	1 m 500 m	3.28 ft 1640.4 ft			Halogen Free Polyolefin (PO)	Flame Retardant	0.56 mm	0.022 "	5.51 mm	0.217 in	0.45 in	11.43 mm
TE Connectivity Raychem Cable Protection ZH2-8.0-0-FSP-SM	70 °C	Black	2 to 1			Tubing Flexible	125 °C	-30 ░C	1 m 500 m	3.28 ft 1640.4 ft	3.99 mm	0.157 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.56 mm	0.022 "			0.339 in	8.61 mm
TE Connectivity Raychem Cable Protection ZH2-18.0-0-FSP-SM	70 °C	Black	2 to 1	164 ft	50 m	Tubing Flexible	125 °C	-30 ░C	1 m	3.28 ft	8.99 mm	0.354 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.76 mm				0.748 in	19 mm	0.03 "
TE Connectivity Raychem Cable Protection ZH2-1.0-0-SP-SM	70 °C	Black	2 to 1			Tubing Flexible	125 °C	-30 ░C	1 m	3.28 ft	0.51 mm	0.02 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.33 mm	0.013 in			0.059 in	1.5 mm
TE Connectivity Raychem Cable Protection ZH2-3.5-0-SP-SM	70 °C	Black	2 to 1	3937.2 ft	1200 m	Tubing Flexible	125 °C	-30 ░C	1 m	3.28 ft	1.75 mm	0.069 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.43 mm	0.017 in			0.161 in	4.09 mm
TE Connectivity Raychem Cable Protection ZH2-13.0-0-FSP-SM	70 °C	Black	2 to 1			Tubing Flexible	125 °C	-30 ░C	1 m 400 m	3.28 ft 1312.3 ft	6.5 mm	0.256 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.66 mm	0.026 "						0.531 "	13.49 mm
TE Connectivity Raychem Cable Protection ZH2-4.0-0-SP-SM	70 °C	Black	2 to 1	0.083 ft 0.125 ' 0.167 ' 0.25 ft	25.4 mm 38.1 mm 50.8 mm 76.2 mm	Tubing Flexible	125 °C	-30 ░C					Halogen Free Polyolefin (PO)	Flame Retardant	0.43 mm	0.017 in	2.01 mm	0.079 in	0.181 in	4.6 mm				1 in 1.5 " 2 " 3 "
TE Connectivity Raychem Cable Protection ZH2-28.0-0-FSP-SM	70 °C	Black	2 to 1	656.2 ft	200 m	Tubing Flexible	125 °C	-30 ░C					Halogen Free Polyolefin (PO)	Flame Retardant	0.89 mm	0.035 in	14 mm	0.551 in	1.181 "	30 mm
TE Connectivity Raychem Cable Protection ZH2-7.0-0-SP-SM	70 °C	Black	2 to 1	164 ft	50 m	Tubing Flexible	125 °C	-30 ░C	1 m	3.28 ft	3.51 mm	0.138 in	Halogen Free Polyolefin (PO)	Flame Retardant	0.56 mm	0.022 "			0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZH2 Series

Heat Shrink Tubing, Flexible 0.748" (19.00mm) 2 to 1 Black 164.0' (50.0m)
