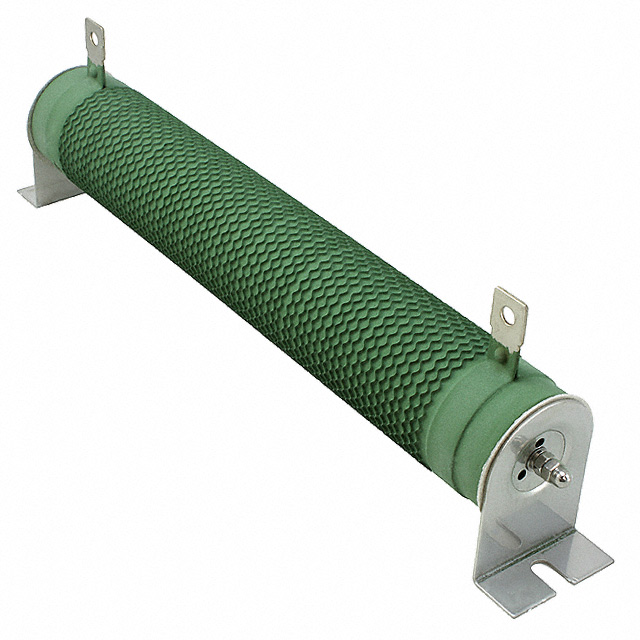

TE750B2R7J

Active

TE Connectivity Passive Product

RES CHAS MNT 2.7 OHM 5% 750W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE750B2R7J

Active

TE Connectivity Passive Product

RES CHAS MNT 2.7 OHM 5% 750W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE750B2R7J

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	750 W
Resistance	2.7 Ohms
Size / Dimension [diameter]	1.969 in
Size / Dimension [diameter]	50 mm
Size / Dimension [x]	12.441 in
Size / Dimension [x]	316 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE750 Series

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Resistance	Power (Watts)	Coating, Housing Type	Mounting Feature	Package / Case	Composition	Tolerance	Temperature Coefficient	Lead Style
TE Connectivity Passive Product TE750B4R7J	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	4.7 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B6R8J	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	6.8 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B330RJ	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	330 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B150RJ	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	150 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B82RJ	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	82 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B470RJ	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	470 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B3R9J	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	3.9 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B5R6J	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	5.6 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B2R7J	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	2.7 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs
TE Connectivity Passive Product TE750B18RJ	12.441 in	1.969 in	316 mm	50 mm	155 °C	-55 °C	Flame Proof Safety	18 Ohms	750 W	Silicone Coated	Brackets	Radial Tubular	Wirewound	5 %	440 ppm/°C	Solder Lugs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.98
		10	$ 52.06
		25	$ 50.47
		50	$ 47.81
		100	$ 43.83

Description

General part information

TE750 Series

2.7 Ohms ±5% 750W Wirewound Chassis Mount Resistor
