ICB12L50F04PO

Active

CARLO GAVAZZI

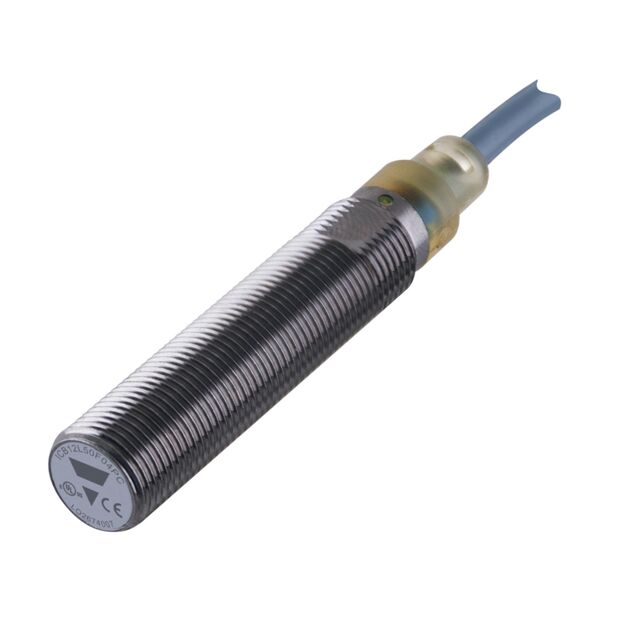

PROX SENSOR IND. M12 CAB 50MM PNP NO FLUSH

Search across all available documentation for this part.

Active

CARLO GAVAZZI

PROX SENSOR IND. M12 CAB 50MM PNP NO FLUSH

Technical Specifications

Parameters and characteristics for this part

Part	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Termination Style	Indicator [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Shielding	Package / Case	Output Type	Response Frequency	Sensing Distance	Sensing Distance
CARLO GAVAZZI ICB12L50N08PAM1	Nickel-Plated Brass	70 °C	-25 °C	Inductive	Connector	LED	10 VDC	36 V	IP67	Unshielded	Cylinder Threaded - M12	4-Wire PNP-NC/NO	2 kHz	0.315 in	8 mm
CARLO GAVAZZI ICB12L50N08NO	Nickel-Plated Brass	70 °C	-25 °C	Inductive	Cable Leads	LED	10 VDC	36 V	IP67	Unshielded	Cylinder Threaded - M12	4-Wire NPN-NO	2 kHz	0.315 in	8 mm
CARLO GAVAZZI ICB12L50F04PO	Nickel-Plated Brass	70 °C	-25 °C	Inductive	Cable Leads	LED	10 VDC	36 V	IP67	Unshielded	Cylinder Threaded - M12	4-Wire PNP-NO	2 kHz	0.157 in	4 mm
CARLO GAVAZZI ICB12L50F02PC	Nickel-Plated Brass	70 °C	-25 °C	Inductive	Cable Leads	LED	10 VDC	36 V	IP67	Unshielded	Cylinder Threaded - M12	4-Wire PNP-NC	2 kHz	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 62.93
Newark	Each	10	$ 66.24
		25	$ 64.08

General part information

PROX SENSOR IND. M12 CAB 50MM PNP NO FLUSH

Technical documentation and resources

No documents available
