50.013

Active

Jacob GmbH

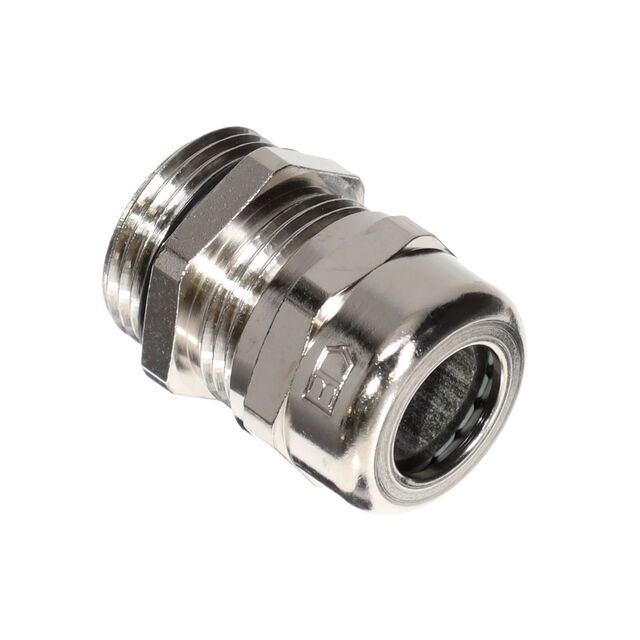

CABLE GLAND 6-12MM PG13.5 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 6-12MM PG13.5 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	50.013

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.256 in
Thread Length	6.5 mm
Thread Size	PG13.5
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Thread Size	Thread Length	Thread Length	Color	Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Jacob GmbH 50.042	38 mm	1.496 in	O-Ring Seal	1.181 in	30 mm	Cable Gland	PG42	10 mm	0.394 in	Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C
Jacob GmbH 50.011	10 mm	0.394 "	O-Ring Seal			Cable Gland	PG11	6 mm	0.236 in	Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C	5 mm	0.197 in
Jacob GmbH 50.007	6.5 mm	0.256 "	O-Ring Seal	0.118 in	3 mm	Cable Gland	PG7			Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C
Jacob GmbH 50.013	12 mm	0.472 in	O-Ring Seal	0.236 in	6 mm	Cable Gland	PG13.5	6.5 mm	0.256 in	Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C
Jacob GmbH 50.029		0.984 in	O-Ring Seal	0.709 in	18.01 mm	Cable Gland	PG29	8 mm	0.315 in	Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C			25 mm
Jacob GmbH 50.016			O-Ring Seal	0.394 in	10 mm	Cable Gland	PG16	6.5 mm	0.256 in	Silver	Brass Nickel Plated	IP68 - Dust Tight Waterproof	100 °C	-40 °C				14 mm	0.551 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG13.5 Silver
