Q-2402G000H.75M

Active

Amphenol Custom Cable

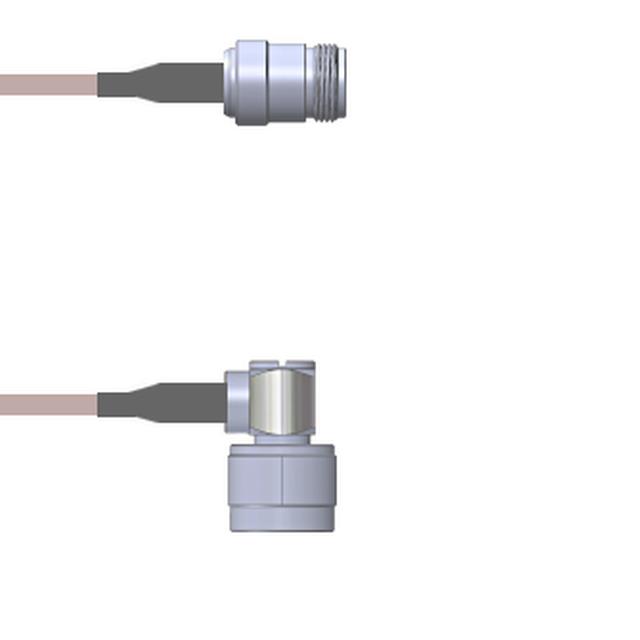

CBL ASSY NTYPE JACK-PLUG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2402G000H.75M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-PLUG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2402G000H.75M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2402G0 Series

Part	2nd Connector Mounting Type	Color	Frequency - Max [Max]	Features	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Length	Length	Overall Impedance	1st Contact Gender	2nd Connector	Cable Type	Style	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2402G000H024i	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	24 "	609.6 mm	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type
Amphenol Custom Cable Q-2402G000H072i	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	72 in	1.8 m	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	6 ft
Amphenol Custom Cable Q-2402G000H084i	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	84 in	2.1 m	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	7 ft
Amphenol Custom Cable Q-2402G000H002M	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	78.7 in	2 m	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	6.6 ft
Amphenol Custom Cable Q-2402G000H.75M	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	29.53 "	750 mm	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type
Amphenol Custom Cable Q-2402G000H048i	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	48 in	1200 mm	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	4 ft
Amphenol Custom Cable Q-2402G000H0.5M	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	19.69 "	50 cm	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type
Amphenol Custom Cable Q-2402G000H108i	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	108 in	2.7 m	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	9 ft
Amphenol Custom Cable Q-2402G000H.25M	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)			50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type		9.843 "	250 mm
Amphenol Custom Cable Q-2402G000H003M	Free Hanging (In-Line)	Copper	11 GHz	Shielded	Male	N-Type Jack	Free Hanging (In-Line)	118.1 in	3 m	50 Ohms	Female	N-Type Plug Right Angle	RG-142	N-Type to N-Type	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.90
		25	$ 103.85
		50	$ 101.81
		100	$ 99.76
		250	$ 97.71

Description

General part information

Q-2402G0 Series

Cable Assembly Coaxial N-Type to N-Type RG-142 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
