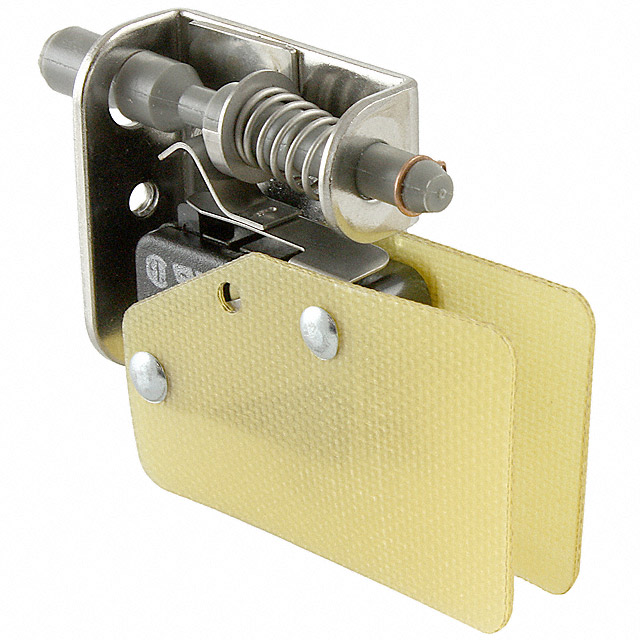

22AC2-UL
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 0.16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
22AC2-UL
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 0.16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22AC2-UL |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | SPDT |
| Mounting Type | Chassis Mount |
| Operating Force | 1814 gf |
| Operating Position | 5.2 mm |
| Operating Position | 0.203 in |
| Overtravel | 0.125 in |
| Overtravel | 3.2 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 50.35 | |
Description
General part information
22AC2 Series
Switch SPDT Chassis Mount
