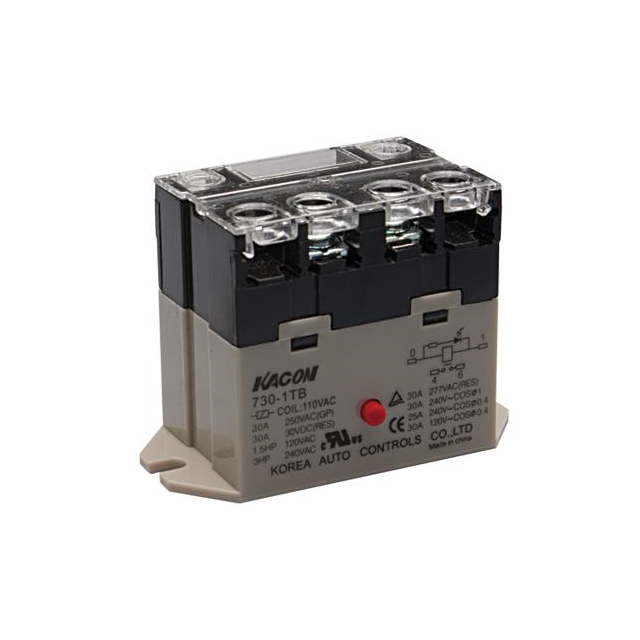

730-1TB-110VAC
ActiveKacon
RELAY GEN PURPOSE SPST 30A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
730-1TB-110VAC
ActiveKacon
RELAY GEN PURPOSE SPST 30A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 730-1TB-110VAC |
|---|---|
| Coil Current | 24.5 mA |
| Coil Voltage | 110 VAC/DC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 30 A |
| Features | Test Button |
| Mounting Type | Chassis Mount |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.04 | |
Description
General part information
730-1TB Series
General Purpose Relay SPST-NO (1 Form A) 110VAC Coil Chassis Mount
