CSHDD16-100C TR13 PBFREE
ActiveCentral Semiconductor Corp

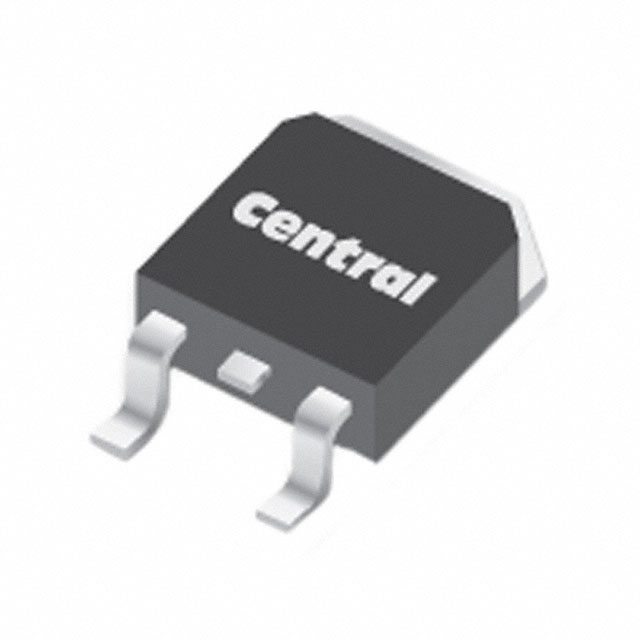

DIODE SCHOTTKY 100V 16A 3-PIN(2+TAB) D2PAK T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSHDD16-100C TR13 PBFREE
ActiveCentral Semiconductor Corp
DIODE SCHOTTKY 100V 16A 3-PIN(2+TAB) D2PAK T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSHDD16-100C TR13 PBFREE |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 16 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | D2PAK |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.68 | |
| 10 | $ 2.23 | |||
| 100 | $ 1.77 | |||
| Digi-Reel® | 1 | $ 2.68 | ||
| 10 | $ 2.23 | |||
| 100 | $ 1.77 | |||
| Tape & Reel (TR) | 800 | $ 1.50 | ||
| 1600 | $ 1.27 | |||
| 2400 | $ 1.21 | |||
| 5600 | $ 1.16 | |||
Description
General part information
CSHDD16 Series
Diode Array 1 Pair Common Cathode 100 V 16A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
