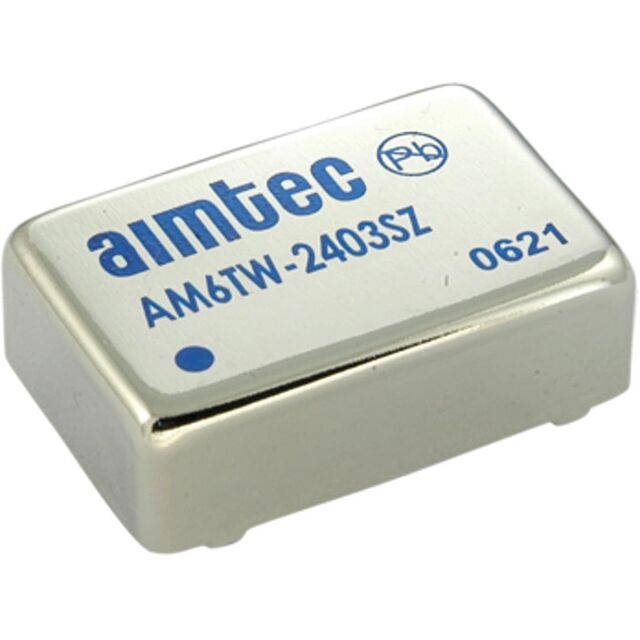

AM6TW-2405SH35Z

Active

aimtec

DC DC CONVERTER 5V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM6TW-2405SH35Z

Active

aimtec

DC DC CONVERTER 5V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM6TW-2405SH35Z

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	1.2 A
Efficiency	81 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Power (Watts)	6 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	3.5 kV
Voltage - Output 1	5 V

AM6TW Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Approval Agency	Voltage - Output 1	Type	Voltage - Isolation	Efficiency	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Mounting Type	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
aimtec AM6TW-2409SH30-NZ	85 °C	-40 °C	6 W	cURus UL	9 V	Isolated Module	3000 V	85 %	24-DIP Module	1	36 V	667 mA	1.24 in	31.6 mm	0.8 in	10.2 mm	0.4 "	20.3 mm	ITE (Commercial)	Through Hole	9 V
aimtec AM6TW-2405SH30-NZ	85 °C	-40 °C	6 W		5 V	Isolated Module	3000 V	83 %	24-DIP Module 7 Leads	1	36 V	1.2 A	1.24 in	31.6 mm	0.8 in	10.2 mm	0.4 "	20.3 mm	ITE (Commercial)	Through Hole	9 V
aimtec AM6TW-2407SH35Z	85 °C	-40 °C	6 W	CE	7.2 V	Isolated Module	3.5 kV	78 %	24-DIP Module	1	36 V	830 mA	1.27 in	32.3 mm	0.84 in	10.5 mm	0.41 "	21.4 mm	ITE (Commercial)	Through Hole	9 V
aimtec AM6TW-2405SH35Z	85 °C	-40 °C	6 W	CE	5 V	Isolated Module	3.5 kV	81 %	24-DIP Module	1	36 V	1.2 A	1.25 "	31.8 mm	0.8 in		0.4 "		ITE (Commercial)	Through Hole	9 V	10.2 mm	20.3 mm
aimtec AM6TW-4824SZ	85 °C	-40 °C	6 W	CE	24 V	Isolated Module	1.5 kV	83 %	24-DIP Module	1	72 V	250 mA	1.27 in	32.3 mm	0.84 in	10.5 mm	0.41 "	21.4 mm	ITE (Commercial)	Through Hole	18 V
aimtec AM6TW-4812SZ	85 °C	-40 °C	6 W	CE	12 V	Isolated Module	1.5 kV		24-DIP Module	1	72 V	500 mA	1.25 "	31.8 mm	0.8 in		0.4 "		ITE (Commercial)	Through Hole	18 V	10.2 mm	20.3 mm
aimtec AM6TW-4824SH35Z	85 °C	-40 °C	6 W	CE	24 V	Isolated Module	3.5 kV	83 %	24-DIP Module	1	72 V	250 mA	1.27 in	32.3 mm	0.84 in	10.5 mm	0.41 "	21.4 mm	ITE (Commercial)	Through Hole	18 V
aimtec AM6TW-2424SZ	85 °C	-40 °C	6 W	CE	24 V	Isolated Module	1.5 kV		24-DIP Module	1	36 V	250 mA	1.27 in	32.3 mm	0.84 in	10.5 mm	0.41 "	21.4 mm	ITE (Commercial)	Through Hole	9 V			12 Leads
aimtec AM6TW-4812D-RZ	85 °C	-40 °C	6 W	CE	12 V	Isolated Module	1.5 kV	83 %	24-DIP Module 8 Leads	2	72 V		1.25 "	31.8 mm	0.8 in		0.4 "		ITE (Commercial)	Through Hole	18 V	10.2 mm	20.3 mm		250 mA	250 mA	-12 V
aimtec AM6TW-2409D-NZ	85 °C	-40 °C	6 W	cURus UL		Isolated Module	1.5 kV	86 %	24-DIP Module	2	36 V								ITE (Commercial)	Through Hole	9 V				333 mA	333 mA	-9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.10
		10	$ 16.79
		25	$ 15.94
		50	$ 15.34
		100	$ 14.75
		250	$ 14.01
		500	$ 13.48

Description

General part information

AM6TW Series

Isolated Module DC DC Converter 1 Output 5V 1.2A 9V - 36V Input
