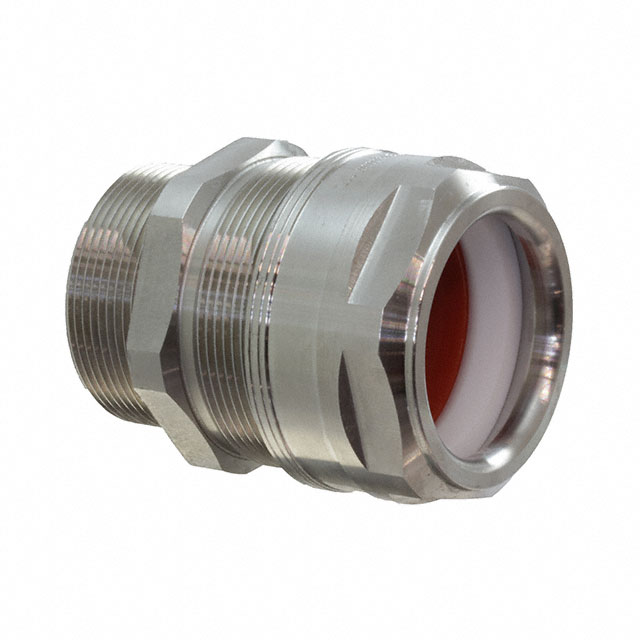

LEX240VA/316LHTS

Active

Pflitsch

CABLE GLAND 25.91-34.04MM M40

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 25.91-34.04MM M40

Technical Specifications

Parameters and characteristics for this part

Specification	LEX240VA/316LHTS

Color	Silver
Includes	O-Ring
Ingress Protection	IP66/IP68
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	34.04 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.34 in
Outside Cable Diameter (Min)	25.91 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.02 in
Panel Hole Size	40 mm
Panel Hole Size	1.575 in
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	M40x1.5
Type	Cable Gland

Part	Ingress Protection	Thread Length	Thread Length	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Thread Size	Color	Type	Panel Hole Size	Panel Hole Size	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch LEX240VA/316LHTS	IP66/IP68	16 mm	0.63 in	Stainless Steel	1.02 in	25.91 mm	M40x1.5	Silver	Cable Gland	40 mm	1.575 in	O-Ring	130 °C	-60 °C	34.04 mm	1.34 in
Pflitsch LEX240MSHTS	IP66/IP68	16 mm	0.63 in	Brass Nickel Plated	1.02 in	25.91 mm	M40x1.5	Silver	Cable Gland	40 mm	1.575 in	O-Ring	130 °C	-60 °C	34.04 mm	1.34 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M40x1.5 Silver
