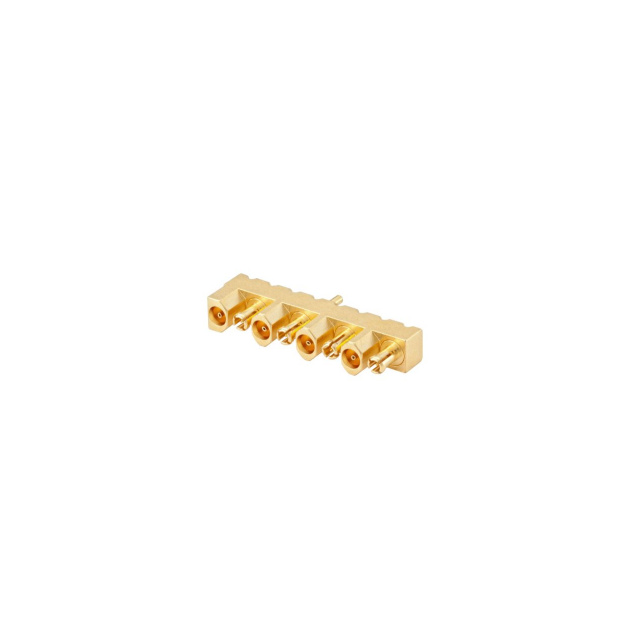

23C14D-40ML5

Active

Rosenberger

MINI COAX MULTIPORT 8 CHANNEL ST

Search across all available documentation for this part.

Active

Rosenberger

MINI COAX MULTIPORT 8 CHANNEL ST

Technical Specifications

Parameters and characteristics for this part

Specification	23C14D-40ML5

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Plug, Male Pin (4), Jack, Female Socket (4)
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Through Hole
Number of Ports	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Finish	Center Contact Material	Fastening Type	Frequency - Max [Max]	Housing Color	Contact Termination	Center Contact Plating	Dielectric Material	Mounting Type	Shield Termination	Connector Style	Connector Type	Impedance	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Ports	Mating Cycles
Rosenberger 23C14D-40ML5	Gold	Beryllium Copper	Snap-On	40 GHz	Gold	Solder	Gold	Polytetrafluoroethylene (PTFE)	Surface Mount Through Hole	Solder	Miniature Coaxial	Jack Female Socket (4) Plug Male Pin (4)	50 Ohms	Beryllium Copper Brass	125 °C	-40 °C	500 V	8	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 160.60

General part information

Miniature Coaxial Connector Jack, Female Socket (4); Plug, Male Pin (4) 50 Ohms Surface Mount, Through Hole Solder
