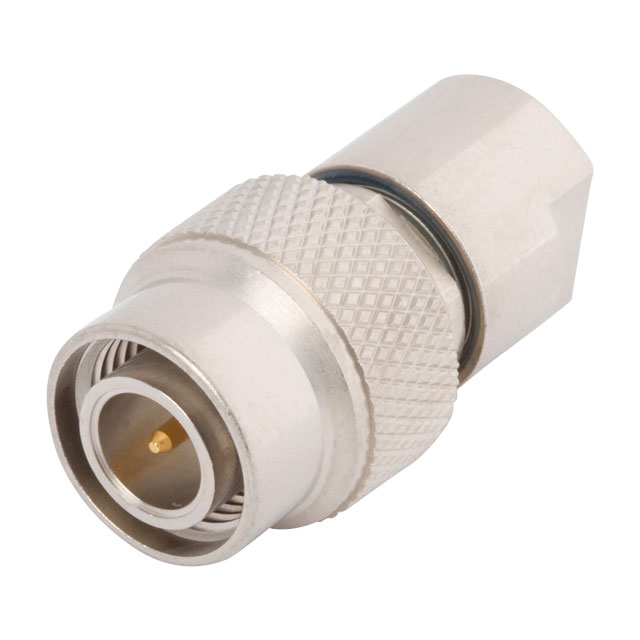

M39030/5-06N

Active

Amphenol SV Microwave

CONN TNC 0HZ TO 12.4GHZ 50OHM ST M GOLD OVER NICKEL BAG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TNC 0HZ TO 12.4GHZ 50OHM ST M GOLD OVER NICKEL BAG

Technical Specifications

Parameters and characteristics for this part

Specification	M39030/5-06N

Body Finish	Nickel
Body Material	Stainless Steel
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)

Part	Body Finish	Contact Material	Body Material	Dielectric Material	Connector Style	Connector Type	Contact Finish	Impedance	Mounting Type	Frequency - Max [Max]
Amphenol SV Microwave M39030/5-06N	Nickel	Beryllium Copper	Stainless Steel	Polytetrafluoroethylene (PTFE)	TNC	Male Pin Plug	Gold	50 Ohms	Free Hanging (In-Line)	12.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 324.45

General part information

Terminator Coax Connector Plug, Male Pin TNC 50 Ohms
