CLA40MT1200NPZ-TRL

Active

IXYS

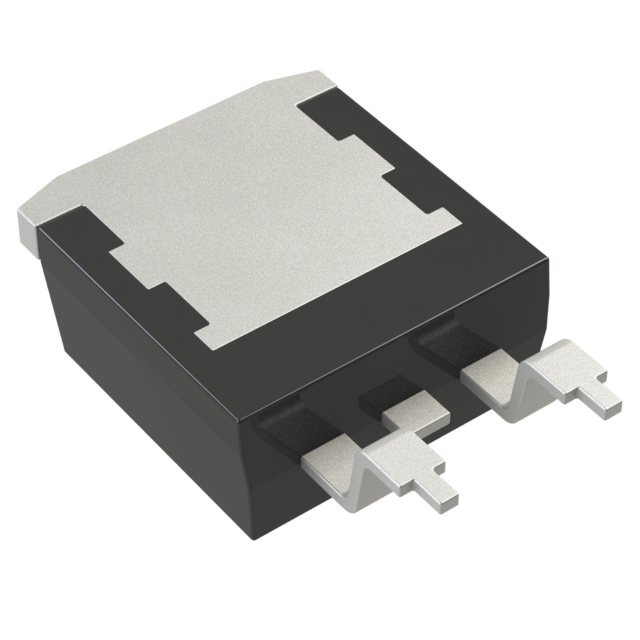

TRIAC 1.2KV 44A TO263HV

Search across all available documentation for this part.

Active

IXYS

TRIAC 1.2KV 44A TO263HV

Technical Specifications

Parameters and characteristics for this part

Specification	CLA40MT1200NPZ-TRL

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	40 mA
Current - Hold (Ih) (Max) [Max]	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	215 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	200 A
Current - On State (It (RMS)) (Max)	44 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Supplier Device Package	TO-263HV
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	1.2 kV

Part	Current - Gate Trigger (Igt) (Max) [Max]	Triac Type	Package / Case	Mounting Type	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Hold (Ih) (Max) [Max]	Configuration	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes	Structure	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]
IXYS CLA40MT1200NPZ-TRL	40 mA	Standard	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1.2 kV	200 A	215 A	50 mA	Single	TO-263HV	150 °C	-40 °C	44 A	1.3 V
IXYS CLA40MT1200NPB	40 mA	Standard	TO-220-3	Through Hole	1.2 kV	200 A	215 A	50 mA	Single	TO-220-3	150 °C	-40 °C	44 A	1.3 V
IXYS CLA40P1200FC	50 mA		i4-Pac™-5	Through Hole	1.2 kV	650 A	700 A	100 mA			150 °C	-40 °C		1.5 V	2 SCRs	Series Connection - All SCRs	40 A	63 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Standard 1.2 kV 44 A Surface Mount TO-263HV
