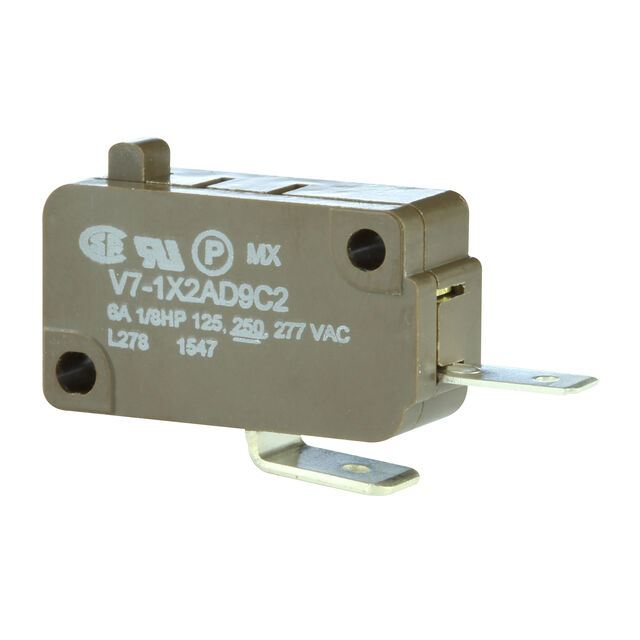

V7-1X2AD9C2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 6A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Force	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Differential Travel	Differential Travel	Operating Position	Operating Position	Mechanical Life	Pretravel	Pretravel	Mounting Type	Overtravel	Overtravel	Switch Function	Actuator Type	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions V7-1X2AD9C2	6 A	150 gf	Quick Connect - 0.250" (6.3mm)	85 °C	-40 °C	SPST-NO	0.25 mm	0.01 in	0.579 in	14.7 mm	10000000 Cycles	0.047 in	1.2 mm	Chassis Mount	1.27 mm	0.05 in	Off-Mom	Round (Pin Plunger)	125 V
Honeywell Sensing and Productivity Solutions V7-1X2AE9-292	6 A	150 gf	Quick Connect - 0.250" (6.3mm)	85 °C	-40 °C	SPST-NO					10000000 Cycles			Chassis Mount			Off-Mom	Lever Simulated Roller	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 7.52

General part information

Switch SPST-NO Chassis Mount

Technical documentation and resources
