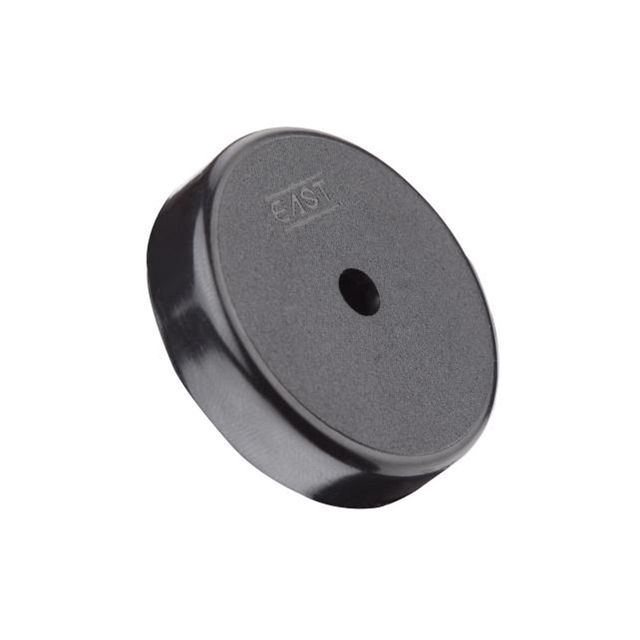

EFM-290EK
ActiveEast Electronics
BUZZER 7.5V 40MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-290EK
ActiveEast Electronics
BUZZER 7.5V 40MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-290EK |
|---|---|
| Current - Supply | 10 mA |
| Frequency | 3.6 kHz |
| Height - Seated (Max) [Max] | 9.5 mm |
| Height - Seated (Max) [Max] | 0.374 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Sound Pressure Level (SPL) | 85 dB |
| Termination | PC Pins |
| Voltage - Rated | 7.5 VDC |
| Voltage Range [Max] | 12 V |
| Voltage Range [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.68 | |
| 100 | $ 1.77 | |||
| 1000 | $ 1.45 | |||
Description
General part information
EFM-290 Series
Buzzers 7.5 V 10mA 3.6kHz 85dB @ 7.5V, 300cm Through Hole PC Pins
