Q-030710005.25M

Active

Amphenol Custom Cable

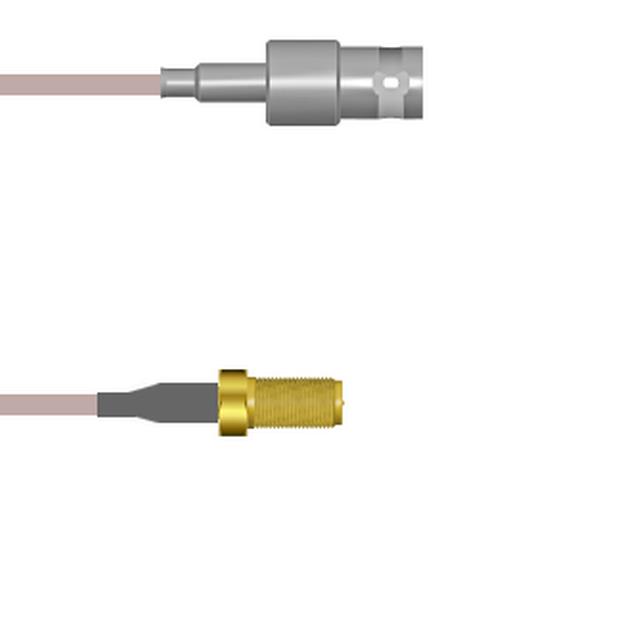

COAX CBL RP-SMA TO BNC 9.8"

Deep-Dive with AI

Search across all available documentation for this part.

Q-030710005.25M

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO BNC 9.8"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030710005.25M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-030710 Series

Part	Overall Impedance	Frequency - Max [Max]	Features	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Cable Type	1st Contact Gender	Color	2nd Connector	1st Connector	Style	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-030710005.75M	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	29.53 "	750 mm	RG-316	Male	Copper	BNC Jack	RP-SMA Jack	RP-SMA to BNC
Amphenol Custom Cable Q-030710003.25M	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female			RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC	9.843 "	250 mm
Amphenol Custom Cable Q-0307100030.5M	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	19.69 "	50 cm	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC
Amphenol Custom Cable Q-030710005.25M	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female			RG-316	Male	Copper	BNC Jack	RP-SMA Jack	RP-SMA to BNC	9.843 "	250 mm
Amphenol Custom Cable Q-030710003001M	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	39.4 in	1 m	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC			3.3 ft
Amphenol Custom Cable Q-030710003060i	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	5 '	1.5 m	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC			5 ft
Amphenol Custom Cable Q-030710005009i	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	9 "	228.6 mm	RG-316	Male	Copper	BNC Jack	RP-SMA Jack	RP-SMA to BNC
Amphenol Custom Cable Q-030710003006i	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	6 in	152.4 mm	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC
Amphenol Custom Cable Q-030710003048i	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	48 in	1200 mm	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC			4 ft
Amphenol Custom Cable Q-030710003036i	50 Ohms	4 GHz	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	36 in	91.44 cm	RG-174	Male	Black	BNC Jack	RP-SMA Jack	RP-SMA to BNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 51.27
		25	$ 50.27
		50	$ 49.27
		100	$ 48.26
		250	$ 47.26

Description

General part information

Q-030710 Series

Cable Assembly Coaxial RP-SMA to BNC RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
