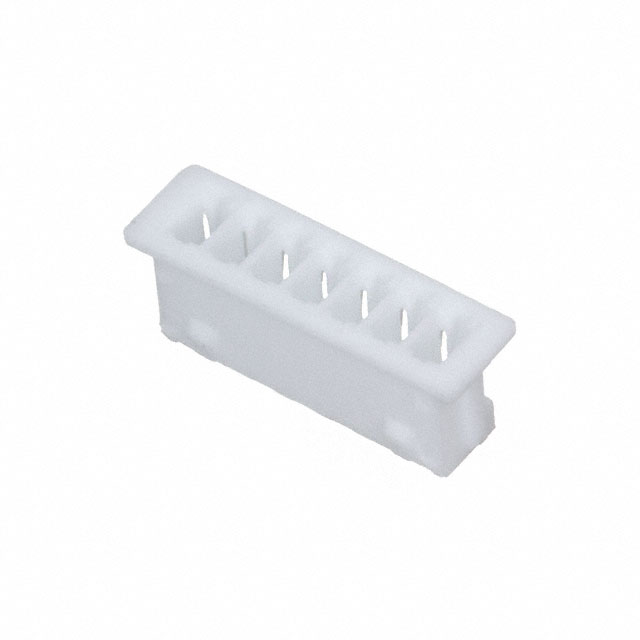

125CH-A-07

Active

Adam Tech

CONN RCPT HSG 7POS 1.25MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 7POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	125CH-A-07

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Note	Number of Positions	Color	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination
Adam Tech 125CH-A-04	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included	4	White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
Adam Tech 125CH-A-05	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included		White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
Adam Tech 125CH-A-07	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included	7	White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
Adam Tech 125CH-A-10	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included	10	White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
Adam Tech 125CH-A-08	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included	8	White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
Adam Tech 125CH-A-09	Receptacle	Free Hanging (In-Line)	0.049 in	1.25 mm	1	Contacts Not Included	9	White	Female Socket	Friction Lock	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	Crimp
