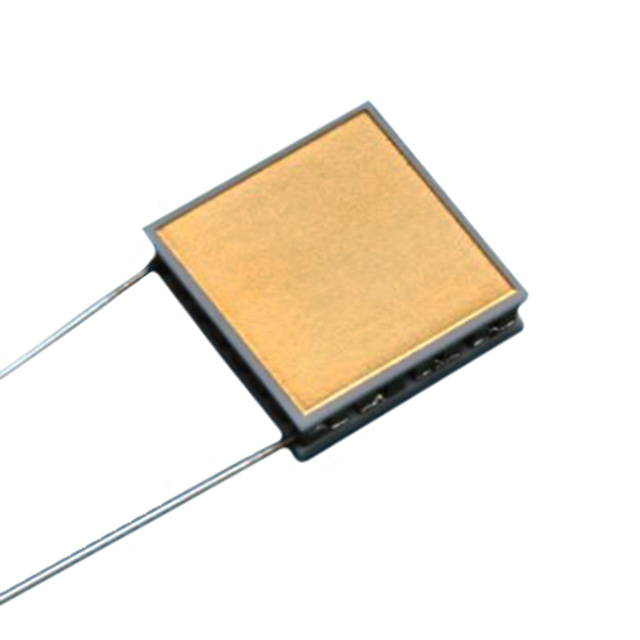

NL1020T-05AC

Active

Marlow Industries, Inc.

TEM 3.96X3.96X2.16MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 3.96X3.96X2.16MM

Technical Specifications

Parameters and characteristics for this part

Part	Features	Qmax @ Th	Voltage - Max [Max]	Number of Stages	Current - Max [Max]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Delta Tmax @ Th
Marlow Industries, Inc. NL1020T-04AC	Lead Wires Sealed	0.9 W	0.8 V	1	1.8 A	2.16 mm	3.96 mm	3.96 mm	0.4 Ohms	64 °C
Marlow Industries, Inc. NL1020T-01AC	Exterior Metallization (Both Sides) Lead Wires	0.9 W	0.8 V	1	1.8 A	2.16 mm	3.96 mm	3.96 mm	0.4 Ohms	64 °C
Marlow Industries, Inc. NL1020T-05AC	Lead Wires	0.9 W	0.8 V	1	1.8 A	2.16 mm	3.96 mm	3.96 mm	0.4 Ohms	64 °C
Marlow Industries, Inc. NL1020T-02AC	Exterior Metallization Lead Wires	0.9 W	0.8 V	1	1.8 A	2.16 mm	3.96 mm	3.96 mm	0.4 Ohms	64 °C
Marlow Industries, Inc. NL1020T-03AC	Lead Wires	0.9 W	0.8 V	1	1.8 A	2.16 mm	3.96 mm	3.96 mm	0.4 Ohms	64 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 0.9W @ 27°C 1.8 A 85°C

Technical documentation and resources

No documents available
