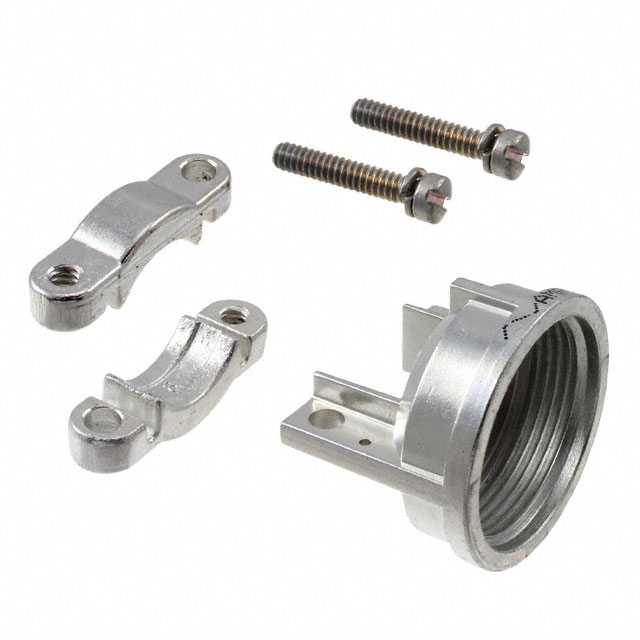

97-3057-1010(639)

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ18 CLEAR 1-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3057-1010(639)

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ18 CLEAR 1-20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3057-1010(639)

Cable Exit	180 °
Cable Opening [custom]	15.88 mm
Cable Opening [custom]	0.625 in
Color	Clear
Features	Clamp Screws
For Use With/Related Products	Jacketed Cable or Wires Protected by Tubing
Includes	5 pcs - 3 pc Cable Clamp, 2 Screws
Material	Zinc Die Cast
Plating	Cadmium
Shell Size - Insert	18
Thread Size	1-20
Type	Cable Clamp

97-3057 Series

Part	Thread Size	For Use With/Related Products	Material	Plating	Type	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Includes	Color	Features	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert
Amphenol Industrial Operations 97-3057-1007	3/4-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp	12SL 14 14S	0.438 in	11.12 mm	2 Screws 5 pcs - 3 pc Cable Clamp	Olive	Clamp Screws	180 °
Amphenol Industrial Operations 97-3057-1004-1	5/8-24	Unjacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp	10SL 12S			1 Bushing 2 Screws 3 pc Cable Clamp	Olive	Bushing Clamp Screws	180 °	7.92 mm	0.312 in
Amphenol Industrial Operations 97-3057-8	7/8-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp				2 pc Cable Clamp 2 Screws 3 Washers	Olive	Clamp Screws Washers	180 °	14.27 mm	0.562 in	Unshielded	1.062 "	26.97 mm
Amphenol Industrial Operations 97-3057-1007(621)	3/4-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Zinc Alloy	Cable Clamp	12SL 14 14S	0.438 in	11.12 mm	2 Screws 5 pcs - 3 pc Cable Clamp	Black	Clamp Screws	180 °
Amphenol Industrial Operations 97-3057-1010-1(621)	1-20	Unjacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Zinc Alloy	Cable Clamp				1 Bushing 2 Screws 3 pc Cable Clamp	Black	Bushing Clamp Screws	180 °	15.88 mm	0.625 in				18
Amphenol Industrial Operations 97-3057-1007-1	3/4-20	Unjacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp	12SL 14 14S	0.438 in	11.12 mm	1 Bushing 2 Screws 3 pc Cable Clamp	Olive	Bushing Clamp Screws	180 °
Amphenol Industrial Operations 97-3057-1010(639)	1-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Cadmium	Cable Clamp				2 Screws 5 pcs - 3 pc Cable Clamp	Clear	Clamp Screws	180 °	15.88 mm	0.625 in				18
Amphenol Industrial Operations 97-3057-10	1-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp				2 pc Cable Clamp 2 Screws 3 Washers	Olive	Clamp Screws Washers	180 °	15.88 mm	0.625 in	Unshielded	1.187 in	30.15 mm	18
Amphenol Industrial Operations 97-3057-1010	1-20	Jacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp				2 Screws 5 pcs - 3 pc Cable Clamp	Olive	Clamp Screws	180 °	15.88 mm	0.625 in				18
Amphenol Industrial Operations 97-3057-1010-1	1-20	Unjacketed Cable or Wires Protected by Tubing	Zinc Die Cast	Chromate	Cable Clamp				1 Bushing 2 Screws 3 pc Cable Clamp	Olive	Bushing Clamp Screws	180 °	15.88 mm	0.625 in				18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.98
		10	$ 5.95
		25	$ 5.62
		50	$ 5.59
		100	$ 5.25
		250	$ 4.98
		500	$ 4.86
		1000	$ 4.74

Description

General part information

97-3057 Series

Clear Connector Cable Clamp 1-20 18
